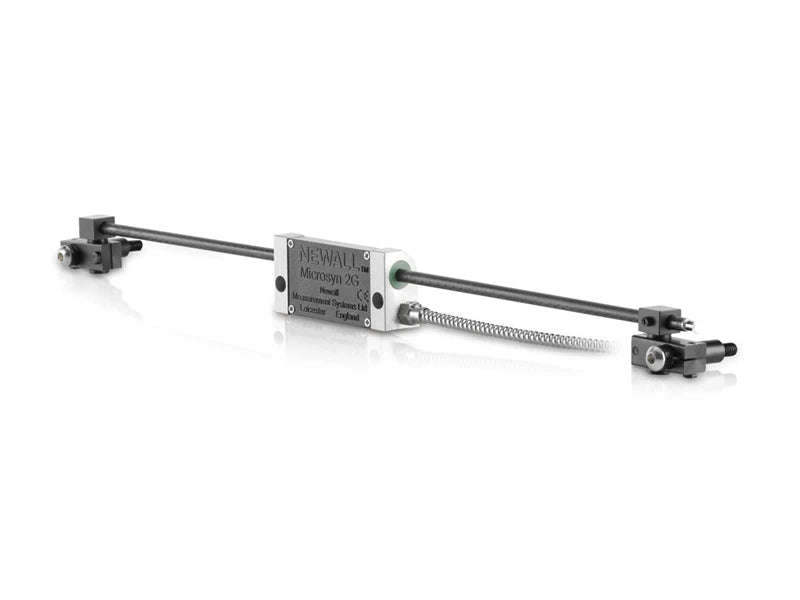

Newall Microsyn 2G encoder assembly, 5 micron accuracy
Newall Microsyn 2G encoder assembly, 5 micron accuracy

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Newall Electronics

Newall - Microsyn 2G Encoder Assembly - 5 Micron, 11.5' Cable

SKU: M2GA0500055035
(0)
$1,286.00 CAD
Direct replacement Newall Microsyn 2G linear encoder assembly, 5 micron accuracy, with the standard 11.5 ft armored reader head cable. Includes the reader head, scale, scale cover, and scale support brackets. Pairs exclusively with Newall DP700 and DP1200 digital readout displays. Select your exact travel length above to see the correct part number and price.
Specifications ▼

Travel Range

2 inch to 40 inch, select exact travel length above

Accuracy

5 Micron accuracy

Resolution

0.00005 in / 0.0001 in / 0.0002 in / 0.0005 in

Cable Length

11.5 ft armored cable, standard. Extended lengths available on request, see Important Information.

Overall Length

Travel length + 7.4 in (add when checking clearance)

Includes

Reader head w/11.5 ft armored cable, scale, scale cover, scale support brackets

Mounting & Bracket Kits ▼

Bracket Kits

Sold separately. Common options: LBK02-M/03-M (lathe), UBK02-M/03-M (universal), KBK01-M (knee), 600-65480 (quill). Contact us to confirm the right kit for your machine.

Extension Cables

Recommended for travels over 100 in. Returnable for full credit if not needed once installed.

Important Information ▼

Order by Travel Length, Not Overall Length

Overall length equals travel length plus 7.4 in. Measure your machine's actual travel before ordering.

Encoder Compatibility

Microsyn 2G pairs with Newall DP700 and DP1200 displays only. Not compatible with NMS800, NMS100, or NMS300, which require Microsyn Serial or Microsyn300 encoders.

Need a Longer Cable?

This listing includes the standard 11.5 ft reader head cable. Newall offers extended cable lengths (32 ft and others) by request, contact us for pricing and lead time.

Need the Other Accuracy Tier?

This is the 5 Micron version. Looking for 10 Micron accuracy instead?

Travel Not Listed?

Contact us for pricing and part number on travels over 40 in or between listed increments.

Ships Direct from Newall Electronics

Lead time and availability confirmed at time of order.

Also Needed For This Job ▼

Also Needed For This Job

Pairs with the 1-Axis, 2-Axis, or 3-Axis Newall DP700 Display. Knee, quill, and lathe installs need a bracket kit (KBK01-M, 600-65480, and others, contact us to order) to mount the reader head.
