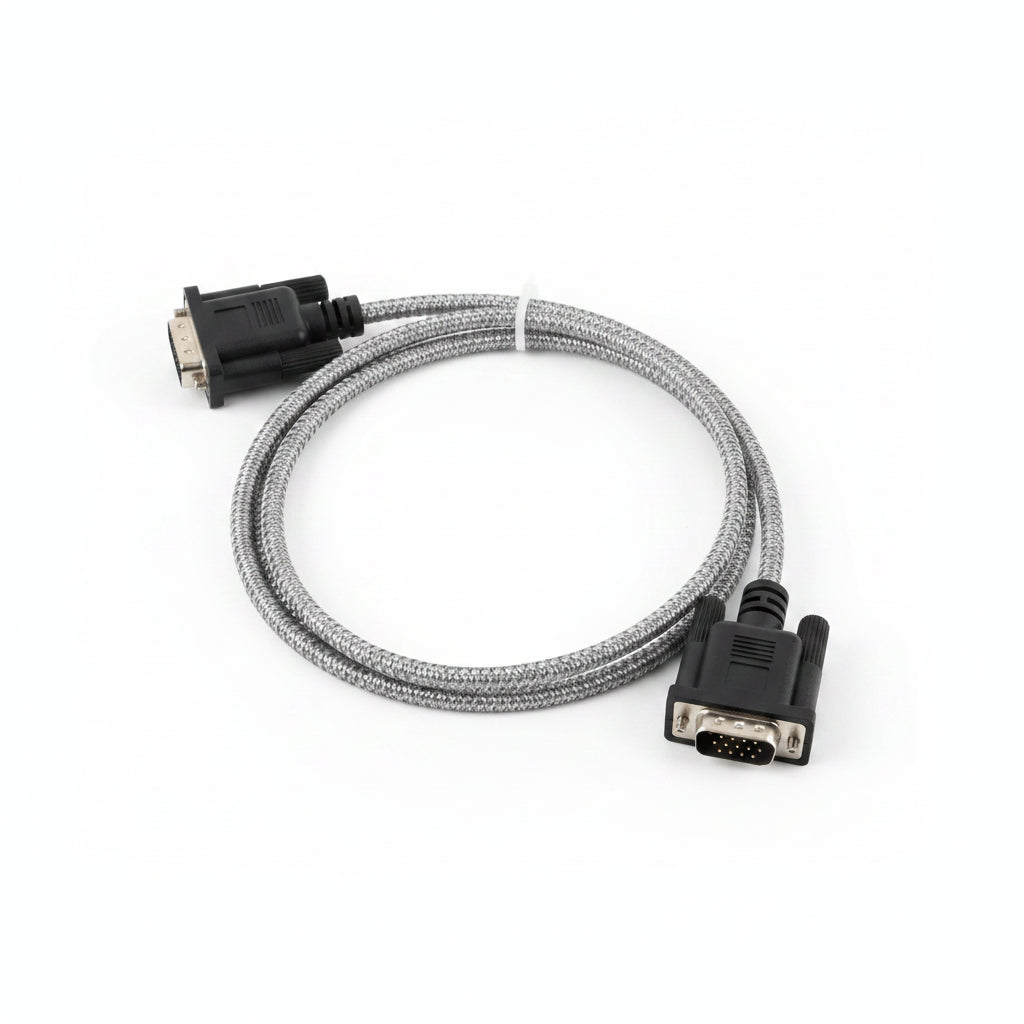

Newall Spherosyn/Microsyn 2G extension cable, D connector
Newall Spherosyn/Microsyn 2G extension cable, D connector

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Newall Electronics

Newall - Spherosyn/Microsyn 2G Extension Cable

SKU: ELAS9D00100D0
(0)
$120.00 USD

Newall extension cable for Spherosyn 2G and Microsyn 2G reader heads, 'D' connector. Recommended for encoder travel lengths of 100 in or more, since the standard reader head cable is 11.5 ft. Select your length above.

Specifications ▼

Length Options

3, 6.5, 11.5, 16, or 32 ft, select above

Connector

'D' connector, matches Spherosyn 2G and Microsyn 2G reader head cable connection

Compatibility

Spherosyn 2G and Microsyn 2G encoders only. Not compatible with Spherosyn Serial, Microsyn Serial, Spherosyn300, or Microsyn300 encoder families.

Important Information ▼

When You Need One

Extension cables are typically needed for encoder travel lengths of 100 in or more, since the standard reader head cable is 11.5 ft. Not needed if a Lathe Carriage Mount is used.

Newall's Own Advice: Order One Anyway on Long Travels

Newall recommends ordering an extension cable on longer travels even if you're not sure you'll need it. Unused cables can be returned for full credit.

Ships Direct from Newall Electronics

Lead time and availability confirmed at time of order.

Also Needed For This Job ▼

Also Needed For This Job

Pairs with the Spherosyn 2G Encoder Assembly, Microsyn 2G 5 Micron, or Microsyn 2G 10 Micron encoder assembly.
