Newall Sphersoyn 2G Linear Encoder Assembly
Newall Sphersoyn 2G Linear Encoder Assembly

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Newall Electronics

Newall - Spherosyn 2G Encoder Assembly - 11.5' Cable

SKU: S00A00051035
(0)
$741.00 USD
Direct replacement Newall Spherosyn 2G linear encoder assembly with the standard 11.5 ft armored reader head cable. Includes the reader head, scale, scale cover, and scale support brackets. Pairs exclusively with Newall DP700 and DP1200 digital readout displays. Select your exact travel length above. Lengths up to 86 in ship standard parcel and are priced online. Lengths over 86 in ship freight and are priced by quote, see Freight Pricing & Lead Times below.
Specifications ▼

Travel Range

2 inch to 384 inch, select exact travel length above

Resolution

0.0002 in / 0.0005 in

Cable Length

11.5 ft armored cable, standard. Extended lengths available on request, see Important Information.

Overall Length

Travel length + 10.2 in (add when checking clearance)

Includes

Reader head w/11.5 ft armored cable, scale, scale cover, scale support brackets

Environmental Rating

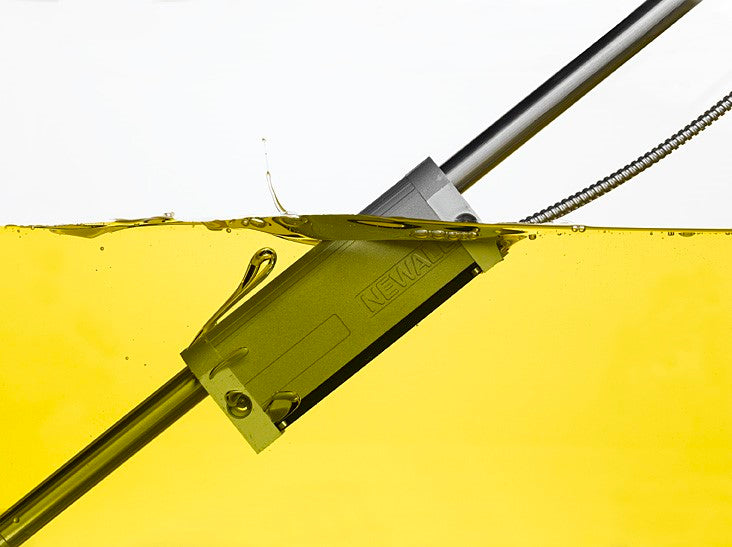

IP67, fully submersible, no glass or tape to break or scratch

Freight Pricing & Lead Times ▼

Travel Lengths Over 86 Inch Are Quoted, Not Priced Online

Scale assemblies longer than 86 in ship via LTL freight and are priced by quote, not listed online. Select your travel length above and contact us with the exact length you need. We will confirm current pricing and lead time before you order.

Have Your Own Freight Account?

If you have a freight carrier account you'd prefer to use, let us know when you request your quote. We can ship on your account instead of ours.

Mounting & Bracket Kits ▼

Bracket Kits

Sold separately. Common options: BPK01-M (knee/turret mill), LBK01-M/02-M/03-M (lathe), UBK01-M/02-M/03-M (universal), 600-65480 (quill). Contact us to confirm the right kit for your machine.

Extension Cables

Recommended for travels over 100 in. Returnable for full credit if not needed once installed.

Important Information ▼

Order by Travel Length, Not Overall Length

Overall length equals travel length plus 10.2 in. Measure your machine's actual travel before ordering.

Encoder Compatibility

Spherosyn 2G pairs with Newall DP700 and DP1200 displays only. Not compatible with NMS800, NMS100, or NMS300, which require Spherosyn Serial or Spherosyn300 encoders.

Need a Longer Cable?

This listing includes the standard 11.5 ft reader head cable. Newall offers extended cable lengths (32 ft and others) by request, contact us for pricing and lead time.

Travel Not Listed?

Contact us for pricing and part number on travels over 384 in or between listed increments.

Ships Direct from Newall Electronics

Lead time and availability confirmed at time of order.

Also Needed For This Job ▼

Also Needed For This Job

Pairs with the 1-Axis, 2-Axis, or 3-Axis Newall DP700 Display. Knee mill and lathe installs need a bracket kit (BPK01-M, LBK01-M, KBK01-M, and others, contact us to order) to mount the reader head.
