Newall - DP700 Digital Readout Display (1 Axis) - DP7001100S12

Axis Configuration

1 Axis

Machine Type

Milling, turning, and general applications

Encoder Compatibility

Newall Spherosyn 2G and Microsyn 2G analogue encoders. Not compatible with Spherosyn Serial, Microsyn Serial, or NMS-series encoders.

Reading Modes

Absolute/incremental, inch/mm conversion, instant radius/diameter, digifind and centrefind. Polar coordinate readings not available on 1-axis configuration.

Programmable Memory

Programmable memory / teach function for stored positions and routines

Feed Rate Display

Live feed rate readout

Zero Approach Warning

Visual warning as an axis approaches zero

Error Compensation

Linear and segmented error compensation

Output

RS-232 output

Display & Keypad

Clean, crisp display with wide viewing angle. Long-life membrane keypad. Solid cast construction.

Input Voltage

15-24VDC ±10% (100-240VAC external switch-mode PSU included)

Environmental Rating

IP54 panel mount, IP40 stand alone

Compliance

Low Voltage Directive 73/23/EEC, BS EN 55022:1998 Class B, BS EN 55024:1998, CE marked

Weight

Approx. 3.35 lbs. Sourced from third-party listing, not yet confirmed against Newall's own datasheet.

Mill Mount

Non-adjustable mill mounting bracket

Lathe Mount

Non-adjustable lathe mounting bracket

Adjustable Mount

Adjustable-position mounting arm option, part no. 600-84115

Swivel Mount

Swivel mount for DP1200 and DP700, part no. 600-84370

Panel Mount

Panel mount version available at no additional charge from Newall. Confirm part number at time of order.

Typical Machine Types

Bridgeport-style knee mills, engine lathes, and surface grinders running Newall Spherosyn 2G or Microsyn 2G encoders

Warranty

3-year no-fault warranty confirmed on DP700 mill packages, covering accidental damage, improper installation, and operator abuse. Standalone-display warranty term pending confirmation with Newall.

Confirm Encoder Generation Before Ordering

The DP700 pairs only with Newall Spherosyn 2G and Microsyn 2G analogue encoders. It is not compatible with Spherosyn Serial, Microsyn Serial, or NMS-series encoders. Contact our team to confirm your existing encoder generation before ordering.

MK1 vs MK2 Hardware Revision

Newall documents two DP700 hardware revisions (MK1 and MK2). Some features, including Multiple Tool Datum, may be revision-specific. Contact our team to confirm which revision this unit ships as.

Upgrading From an Older Newall Display

If replacing a C80, Topaz, or Sapphire display with a round 7-pin encoder connector, an adapter cable (Newall part no. 307-80980) is required. Confirm your encoder connector type before ordering.

Ships Direct from Newall Electronics

Lead time and availability confirmed at time of order. Contact our team for current stock.

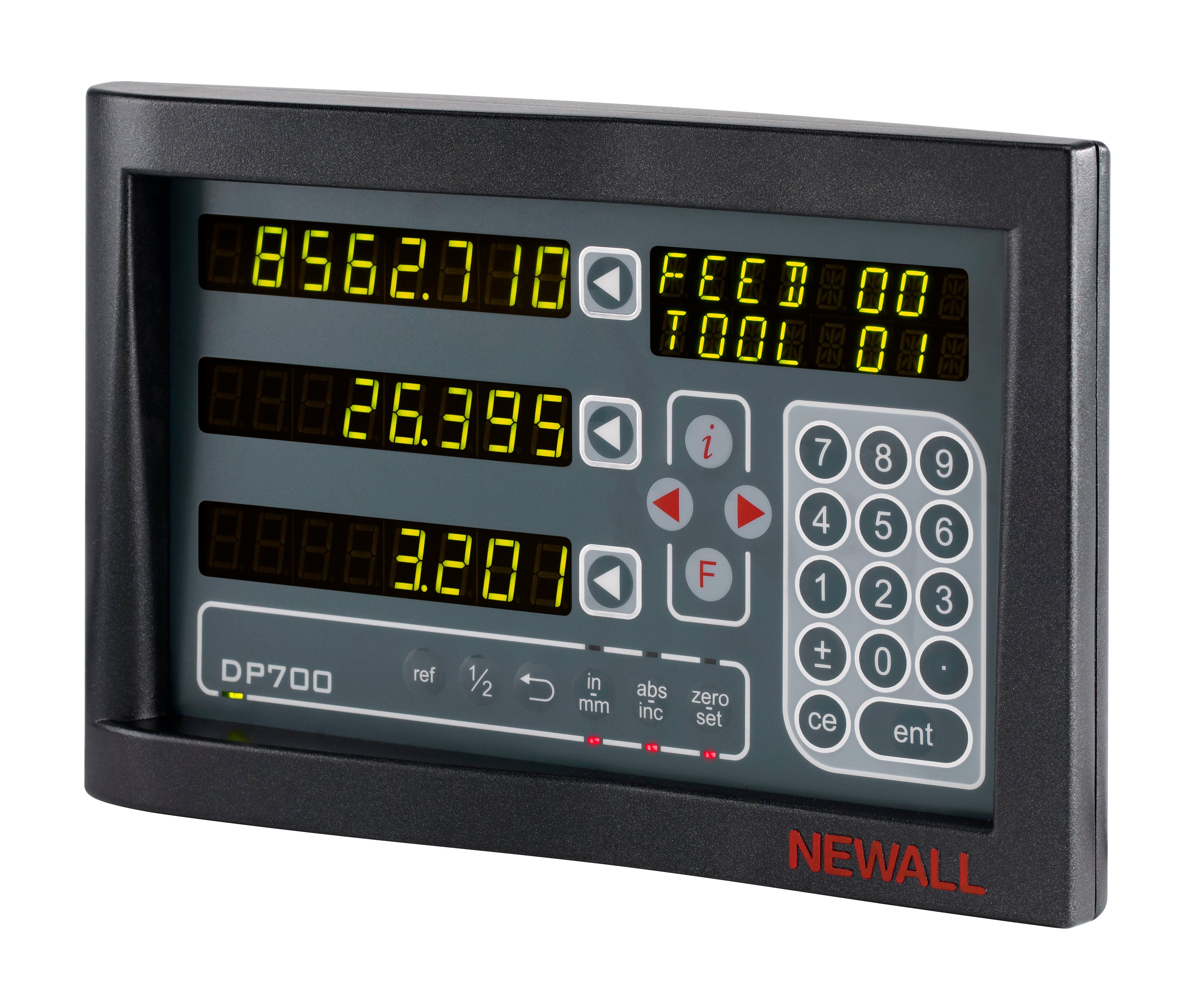

Photo Shown Is Representative

Image displays a typical unit of this display. Confirm exact fit using the part number and specs above before ordering.
