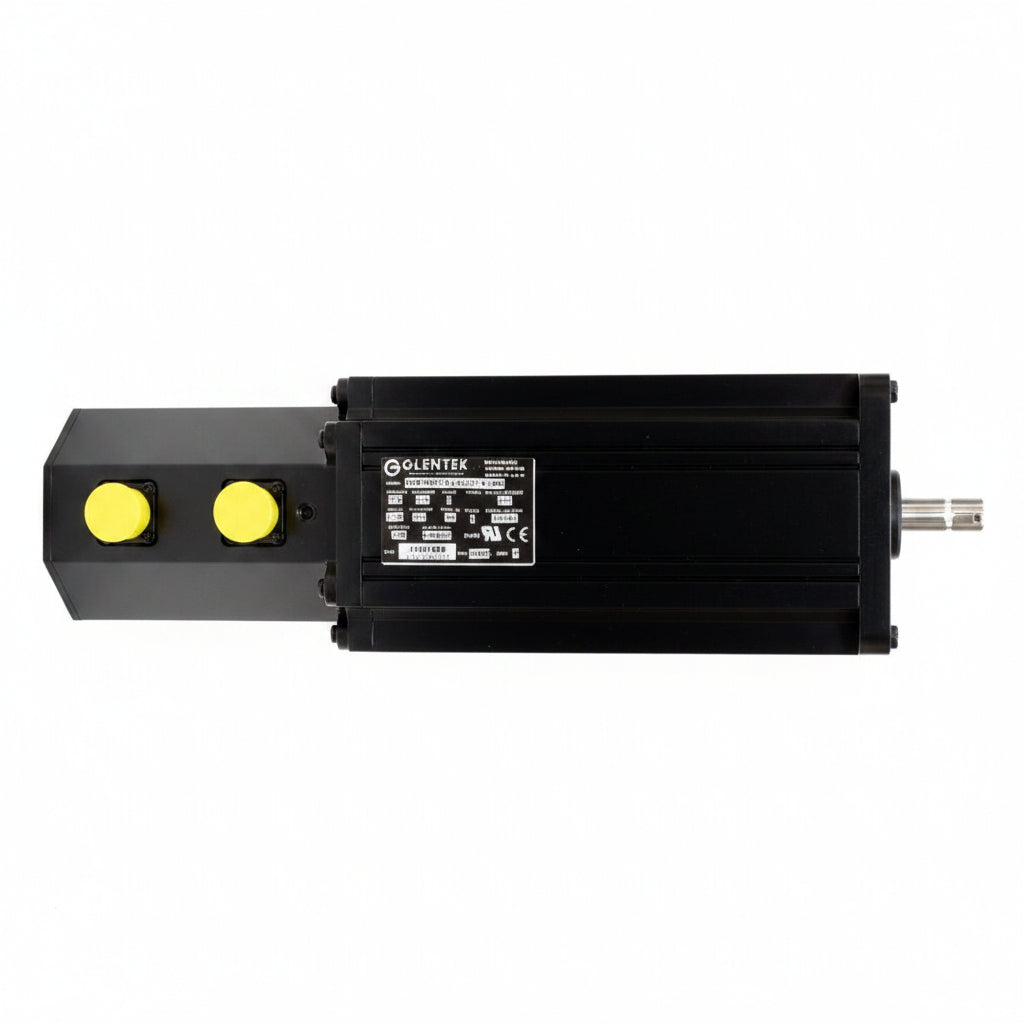

Fadal AC servo motor MTR-0142 — front view showing motor housing and shaft
Fadal AC servo motor MTR-0142 — front view showing motor housing and shaft

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Fadal

Fadal - AC Servo Motor, 8192 Line - MTR-0142

SKU: MTR-0142
(0)
$3,063.00 CAD

The MTR-0142 is the Glentek AC brushless axis motor used on Fadal VMCs running 8192 line metric ballscrews. It pairs with the AMP-0040 and AMP-0040C amplifiers. When an axis loses position, drifts, or won't hold under load, a failing motor encoder or Hall sensor is a common cause that gets mistaken for an amplifier fault.

Specifications ▼

Encoder Line Count

8192 line, AC brushless

Ballscrew Type

Metric pitch

Amplifier Compatibility

Glentek AMP-0040, digital AMP-0040C

Fault Codes ▼

Fault Code 1

"No motor feedback," which appears on power up if no motor feedback (resolver or encoder) or no motor motion is detected by the axis controller.

Fault Code 18

"Servo amplifier fault line down," meaning the axis card no longer detects the fault line signal from the amplifier, or the signal strength drops below 10V.

Amplifier LED Indicators

Below the amplifier's 10-pin connector are three LEDs: Hall Error, Encoder Error, and Index. If either error LED lights up, the motor is the likely fault, not the amplifier.

Compatible Machines ▼

Fadal VMC 4020, 4525, 5020A, 6030, 6535, 8030

All models using 8192 line AC brushless motors with metric pitch ballscrews. Confirm your motor type before ordering.

Important Information ▼

Usually In Stock

Contact us to confirm current availability before ordering.

Baldor Equivalent

Functionally interchangeable with Baldor MTR-0146

Also Needed For This Job ▼

Also Needed For This Job

If the motor tests fine but the axis still misbehaves, check the amplifier next. See the analog AMP-0040 or its digital replacement AMP-0040C. If all three axes on the same chassis are failing, you may need the full AMP-0028 chassis assembly instead.
