Acu-Rite - DRO Side Mount Bracket - 1223635-01

Part Number

1223635-01

Type

U-bracket with T-joint — side-mount anchor bracket for wall, column, or flat vertical surface

Included

Bracket anchor only — mounting arm not included

Mount Interface

T-joint receiver — accepts Acu-Rite DRO arm assembly with full tilt and swivel adjustment

Compatible Displays

DRO101, DRO102, DRO103, DRO203, DRO203Q, DRO303, DRO304 — all DRO100 / DRO200 / DRO300 families

Application

Wall, column, and surface mounts — mills, lathes, and grinders

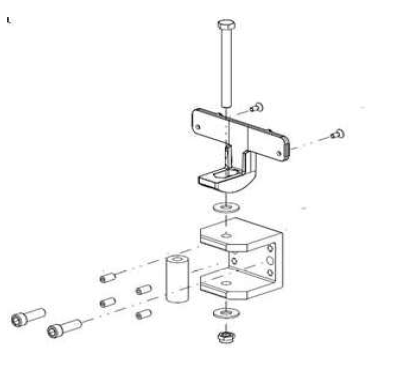

U-Bracket with T-Joint Receiver

Main bracket body — anchors to surface and accepts mounting arm via T-joint

Side Mount Bracket & Spacer

Secondary bracket and spacer for surface-flush installation

Holder

Tilt/swivel tension holder for arm positioning

Mounting Hardware

M8 × 85 hex head screw, M8 hex nut, M4 × 10 countersunk screws × 2, 5/16 flat washers × 2, 1/4-20 set screws × 4, 5/16-18 socket head cap screws × 2

Bracket Anchor Only — Arm Not Included

This is the wall/column anchor bracket only. A DRO mounting arm is required separately. If you need a complete arm + bracket solution, order the Short Arm Kit (1298186-01) or Long Arm Kit (1292728-01) instead.

Surface Must Be Solid and Plumb

The bracket anchors via a single M8 bolt. Wall or column surface must be structurally sound to support the DRO display weight. Verify surface material before installing.

Ships Direct from Acu-Rite Solutions

Fulfilled from Schaumburg, IL. Expedited shipping available at checkout.
