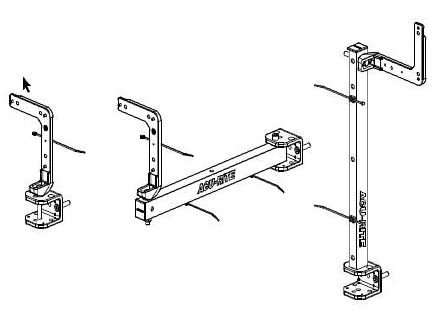

Acu-Rite - DRO Short Arm Tilt Swivel Mounting Kit - 1298186-01

Part Number

1298186-01

Replaces

Legacy SKU 1223631-01 — direct current replacement

Type

Short arm tilt & swivel mounting kit — arm, head, and all hardware included

Dimensions

21.25 × 3.5 × 10.25 in

Weight

4.05 lbs

Max Display Load

10.0 kg

Compatible Displays

DRO101, DRO102, DRO103, DRO203, DRO203Q, DRO303, DRO304 — all DRO100 / DRO200 / DRO300 families

Application

Mills, Lathes, and Grinders

Mounting Arm Assembly

Short arm and arm mount bracket

Tilt & Swivel Head

Holder with full tilt and swivel adjustment — positions display to any viewing angle

Mounting Hardware

M8 hex head screws, washers, lock nuts, socket head cap screws, setscrews, and countersunk screws

Cable Management

3 cable ties included for routing DRO cables along the arm

Complete Kit — Nothing Else Required

Arm, tilt/swivel head, and all hardware are included. Order the DRO display separately if not already purchased.

Short vs. Long Arm — Same Capability

Same tilt/swivel head and 10.0 kg max load as the Long Arm Kit (1292728-01). Choose short for tighter setups, long for greater reach. $40 less than the long arm.

MILLMATE Replacement — Adapter Cables Required

Replacing a legacy MILLMATE with a DRO203? Also order cable 683201-03 for each encoder axis before installing.

Ships Direct from Acu-Rite Solutions

Fulfilled from Schaumburg, IL. Expedited shipping available at checkout.
