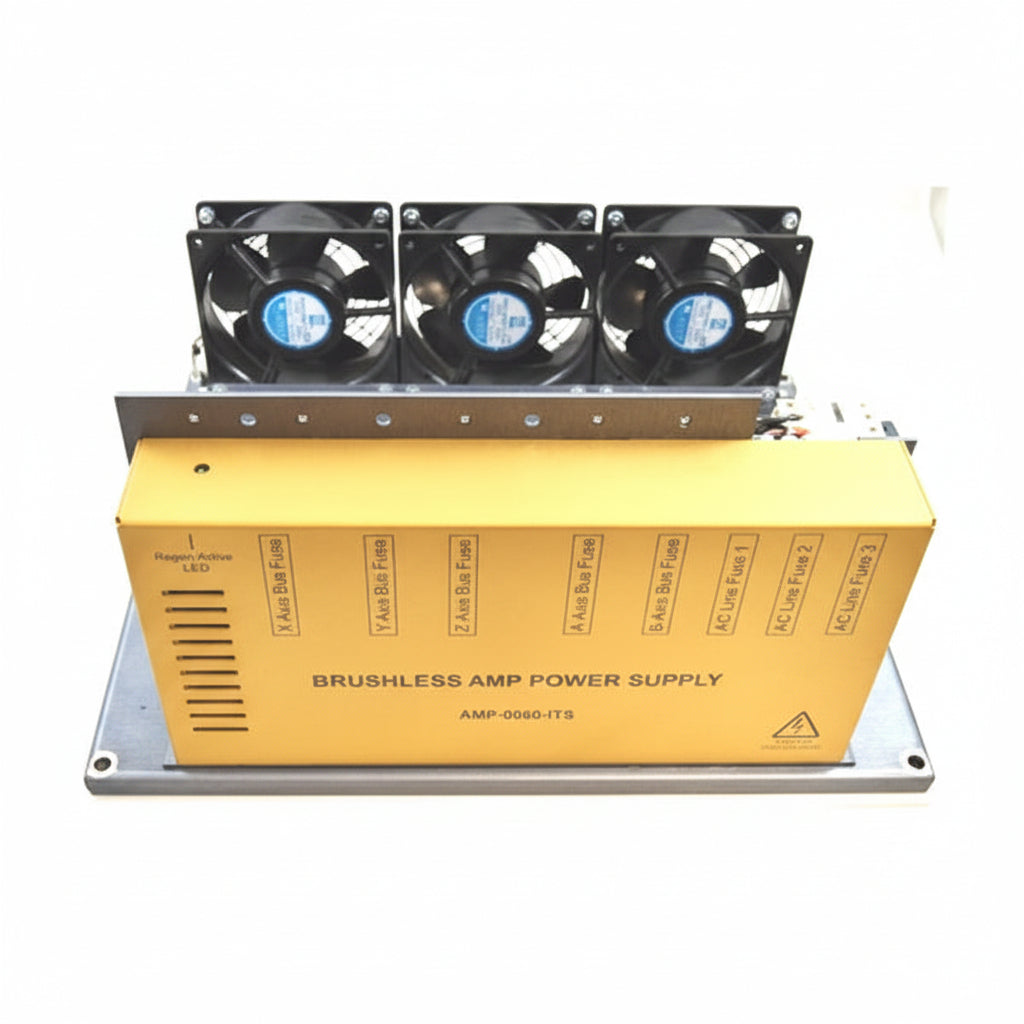

Fadal AC amp chassis AMP-0060 — empty 5-slot chassis with power supply, no cards installed
Fadal AC amp chassis AMP-0060 — empty 5-slot chassis with power supply, no cards installed

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Fadal

Fadal - AC Amplifier Chassis & Power Supply, No Cards - AMP-0037

SKU: AMP-0037
(0)
$1,300.71 USD

The AMP-0037 is the bare AC servo amplifier chassis and power supply for Fadal VMCs, five slots, no amplifier cards installed. Build your own configuration by pairing it with AMP-0040 cards for 8192 line motors or AMP-0039 cards for 5000 line motors, sold separately. When the chassis or power supply fails, all axes on that chassis go down at once, regardless of which cards are installed.

Specifications ▼

Output Voltage

330 to 360V DC

Configuration

5-slot chassis, empty, ready for cards

Safety

Contactor wired to Emergency Stop circuit

Included Hardware

External REGEN resistor and mounting hardware

Fault Codes ▼

Fault Code 1

"No motor feedback," which appears on power up if no motor feedback (resolver or encoder) or no motor motion is detected by the axis controller.

Fault Code 18

"Servo amplifier fault line down," meaning the axis card no longer detects the fault line signal from the amplifier, or the signal strength drops below 10V.

Compatible Machines ▼

Any Fadal VMC running AC brushless amplifier cards

The bare chassis is line-agnostic. Compatibility depends entirely on which cards you install: AMP-0040 for 8192 line boxed-way machines, or AMP-0039 for 5000 line linear-way machines.

Important Information ▼

Usually In Stock

Contact us to confirm current availability before ordering.

Cards Not Included

This listing is the chassis and power supply only. Amplifier cards are purchased separately based on your machine's encoder line count.

Also Needed For This Job ▼

Also Needed For This Job

Choose your amplifier cards based on your machine. For 8192 line boxed-way VMCs, see AMP-0040. For 5000 line linear-way VMCs, see AMP-0039. Prefer everything bundled together with cards already installed? See the fully populated AMP-0028 or AMP-0038 instead.
