Acu-Rite - DRO102 Kit - 2-Axis Lathe - 8" x 40" Travel
Couldn't load pickup availability

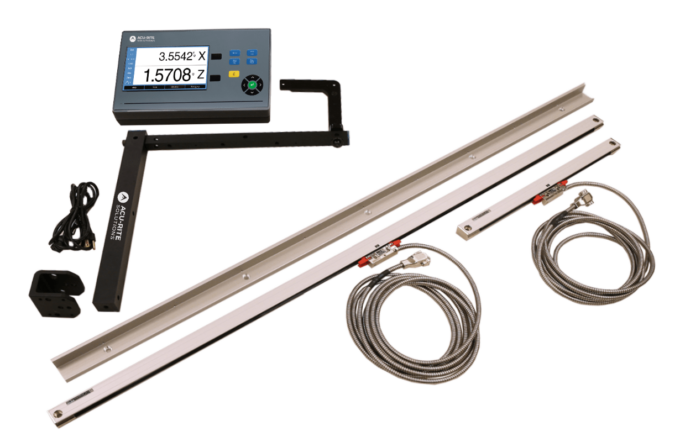

Complete 2-axis Acu-Rite DRO102 kit for manual lathes with 8" x 40" (200mm x 1,000mm) scale travel. OEM base kit SKU: 1393368-08.
⚠ Mounting Bracket Not Included
This kit requires a machine-specific bracket to mount the SENC 150 scales to your lathe. Bracket selection depends on your machine make and model. Find your lathe bracket →
Specifications ▼
DRO Unit
DRO102 · 7" Color Display · 0.0002" Resolution · Made in USA
Application
2-Axis Manual Lathe (Turning)
X-Axis Scale Travel (Cross Slide)
8" (200mm)
Z-Axis Scale Travel (Saddle / Bed)
40" (1,000mm)
Scale Resolution
5µm (0.0002") ABS/INC
Cable Length
13 ft (4m) armor cable per scale
Scale Protection
IP53
Scale Construction
Glass Scale · Position-Trac
OEM Kit SKU
Kit Includes ▼
7" Color Display · 0.0002" Resolution · ABS/INC · Inch/MM · RAD/DIA · Made in USA
SENC 150 8" Linear Scale (X-Axis / Cross Slide)
8" Travel · 5µm Resolution · IP53 · Glass Scale
SENC 150 40" Linear Scale (Z-Axis / Saddle)
40" Travel · 5µm Resolution · IP53 · Glass Scale
Connecting Cables
Pre-Terminated · OEM-Spec Lengths
Also Available Separately ▼
Also Available Separately
Need a replacement scale only? The SENC 150 is sold standalone — select your travel length from the variant selector. For space-restricted lathe installations, the SENC 50 offers the same glass-scale precision in a compact housing. Looking to upgrade to the DRO203 with dual resolution? View the DRO203 8×40 lathe kit → Need a bracket for your specific lathe make and model? Contact our parts team with your machine make and model →
Authorized Acu-Rite distributor. Same warranty as purchasing direct from Acu-Rite Solutions — at a lower price.
