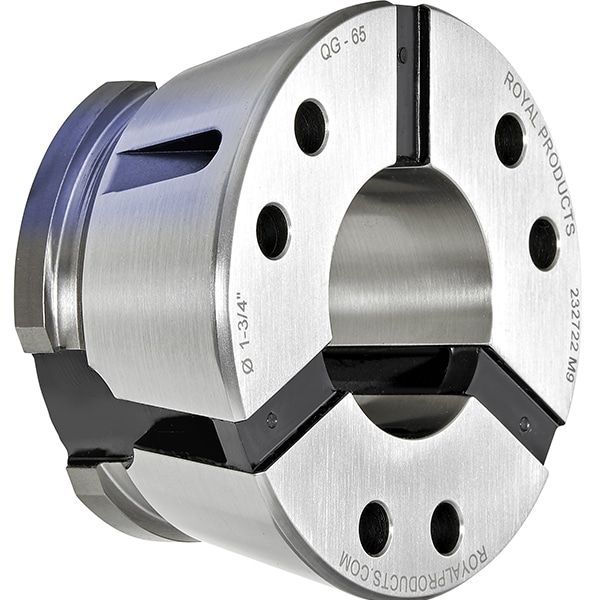

Royal QG-65 Round Smooth Collet 44229, three-segment metal collet with a large center bore and drilled face holes
Royal QG-65 Round Smooth Collet 44229, three-segment metal collet with a large center bore and drilled face holes

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Royal Products

Royal - QG-65 Round Smooth Collet, 1 1⁄16" - 44229

SKU: 44229
(0)
$608.00 CAD

The Royal 44229 is a QG-65 round smooth collet with a 1 1/16" (1.063") nominal size and a 1.032" to 1.094" collet range. It fits QG-65 collet chuck models, and its vulcanization is guaranteed for life. A wrong-size collet keeps the job from running, so confirm the nominal size and chuck model below before ordering.

Collets

Royal - QG-65 Round Smooth Collet, 1 1⁄16"

Specifications ▼

Fits Collet Chuck Model

QG-65

Collet Style

Round Smooth

Nominal Size

1 1⁄16" (1.063")

Collet Range

1.032" - 1.094"

Maximum Capacity: Bar Diameter

2.66" (65.8mm)

Maximum Capacity: Slug Diameter

3.40" (86.4mm)

Thru Maximum Capacity (in)

2.66

Counter-Bore Maximum Capacity (in)

3.40

Important Information ▼

Availability

Available to order. Ships direct from New York.

Confirm Chuck Model Before Ordering

This collet fits QG-65 chucks. Check your chuck model and the nominal size against the part before you order.
