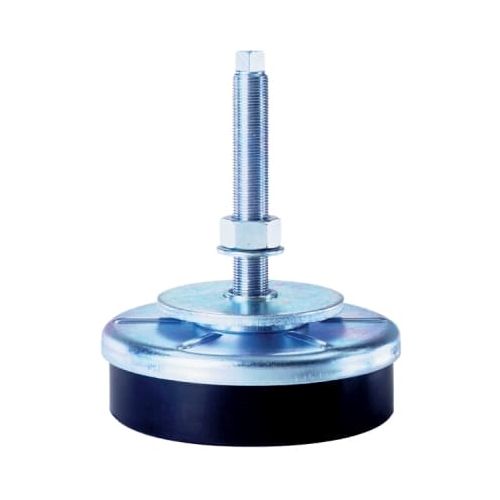

Royal Machine Mount #2 27002, black rubber base, zinc-plated support cup and threaded leveling bolt with hex nut
Royal Machine Mount #2 27002, black rubber base, zinc-plated support cup and threaded leveling bolt with hex nut

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Royal Products

Royal - Machine Mount #2 - 27002

SKU: 27002
(0)
$192.00 CAD

The Royal 27002 is a type #2 machine mount that levels a machine and isolates its vibration. It carries 880 to 2,200 lbs per mount on non-impact machinery. The base is chloroprene rubber that resists oil, water and many chemicals, the support cup is machined from solid bar, and all metal parts are zinc plated.

Mounting hardwareS

Royal - Machine Mount #2

Specifications ▼

Mount Type

#2

Load Range per Mount (lbs.) for Non-Impact Machinery

880-2,200

Load Range per Mount (lbs.) for Injection Molding Machines

790 max.

Load Range per Mount (lbs.) for Presses up to 125 strokes / min

440-880

Load Range per Mount (lbs.) for Presses up to 180 strokes / min

300-770

Load Range per Mount (lbs.) for Presses up to 200 strokes / min

260-550

Base Diameter

4.75

Leveling Plate Diameter

3.12

Height to Top of Leveling Plate

1.94

Height to Top of Bolt

5.25

Leveling Bolt Size

M16 x 1.5

Standard Leveling Bolt

4.72

Level Adjustment

0.88

Important Information ▼

Availability

Available to order. Ships direct from New York.

Confirm Load Range Before Ordering

Load range per mount depends on the machine type. Check your machine weight and type against the load ranges above before you order.
