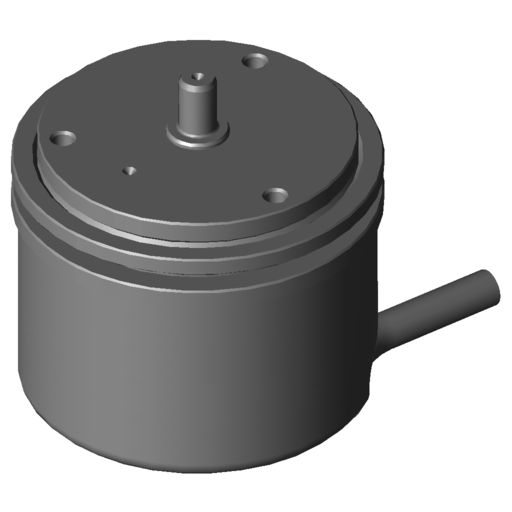

Heidenhain - ROD 426 - Incremental Rotary Encoder - 376846-79

• SHIPS DIRECTILY FROM OEM
• CONTACT OUR TEAM FOR AVAILABILITY AND BEST PRICING
• SUCCESSOR PART FOR P/N: 295434-81

ROD 426
Incremental rotary encoder with integral bearing
for separate shaft coupling
Line count:             1000
Output signal:          TTL
Max. scanning frequency:300.00 kHz
Power supply:           5 V (+-10 %)
Flange version:         Synchro flange Ø 58 mm,
                        centering collar 50 mm,
                        bolt circle Ø 42 mm, 3 x
                        M4
Shaft:                  Solid shaft, diameter 6
                        mm, length 9.5 mm
Degree of protection:   IP64 (EN60529)
Operating temperature:  -40/+100 °C
Electrical connection:  Connector M23, male,
                        12-pin
Pin configuration:      D294999
Connecting direction:   Cable outlet for axial and
                        radial use
Cable length:           1.00 m
Special characteristics,
rotational encoders:    none
