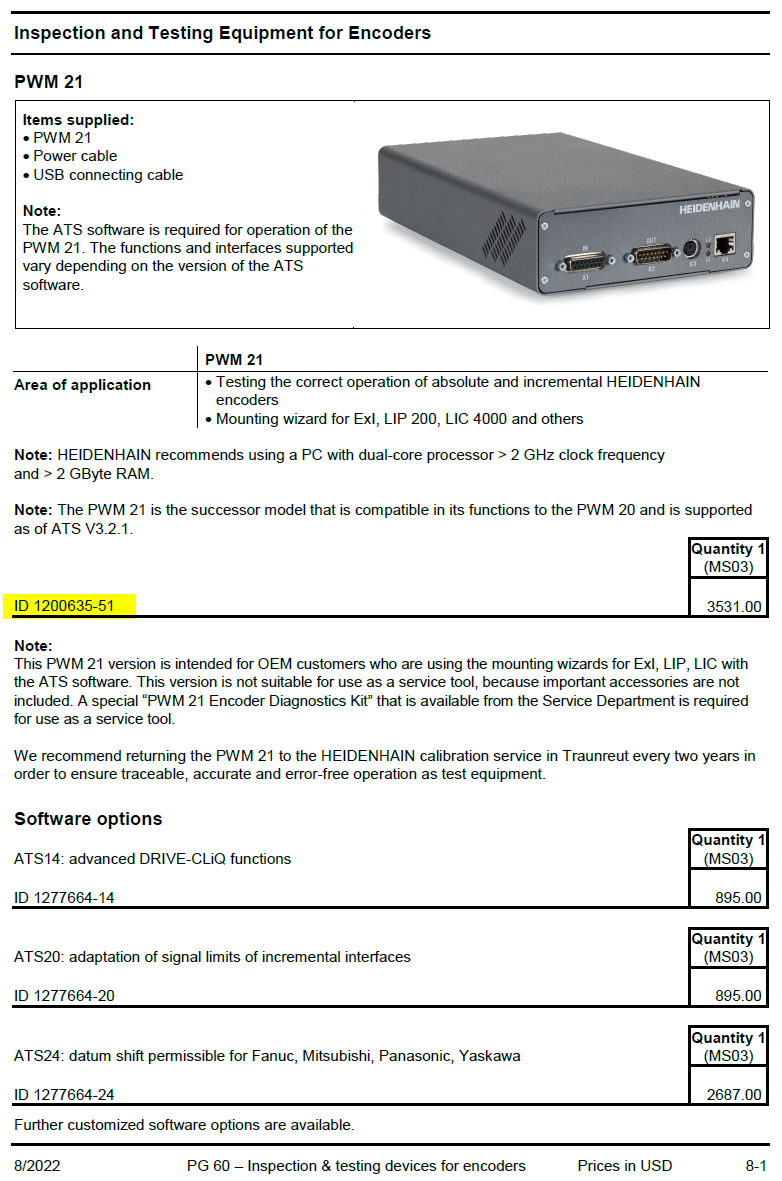

PWM 21 Testing Device - 1200635-51

PWM 21
Testing device (PWM) for detailed testing of an
incremental or absolute encoder (also in a closed
control loop), ATS software required, scope of
function depends on the software version and the
interfaces supported.
Input interface:        Vpp/TTL/µApp/RS485/
                        I2C0x/DQ0
Output interface:       USB 2.0
Electrical connection:  Built-in D-sub connector
                        without housing, 2-row,
                        female, 15-pin
Pin configuration:      D741688
Power supply:           100 ... 240 Vac (+-10 %),
                        50 ... 60 Hz (+-2 Hz) / 24
                        Vdc (+-10 %)
Degree of protection:   IP20 (EN60529)
Operating temperature:  0/+45 °C
Special characteristics,
interface electronics:  Trigger in / sync out
Special characteristics,ATS software and the
software:               associated documentation
                        are available for free
                        downloading at
                        www.heidenhain.de
Software function 2:    Note the system
                        requirements
Software function 3:    see user's manual
