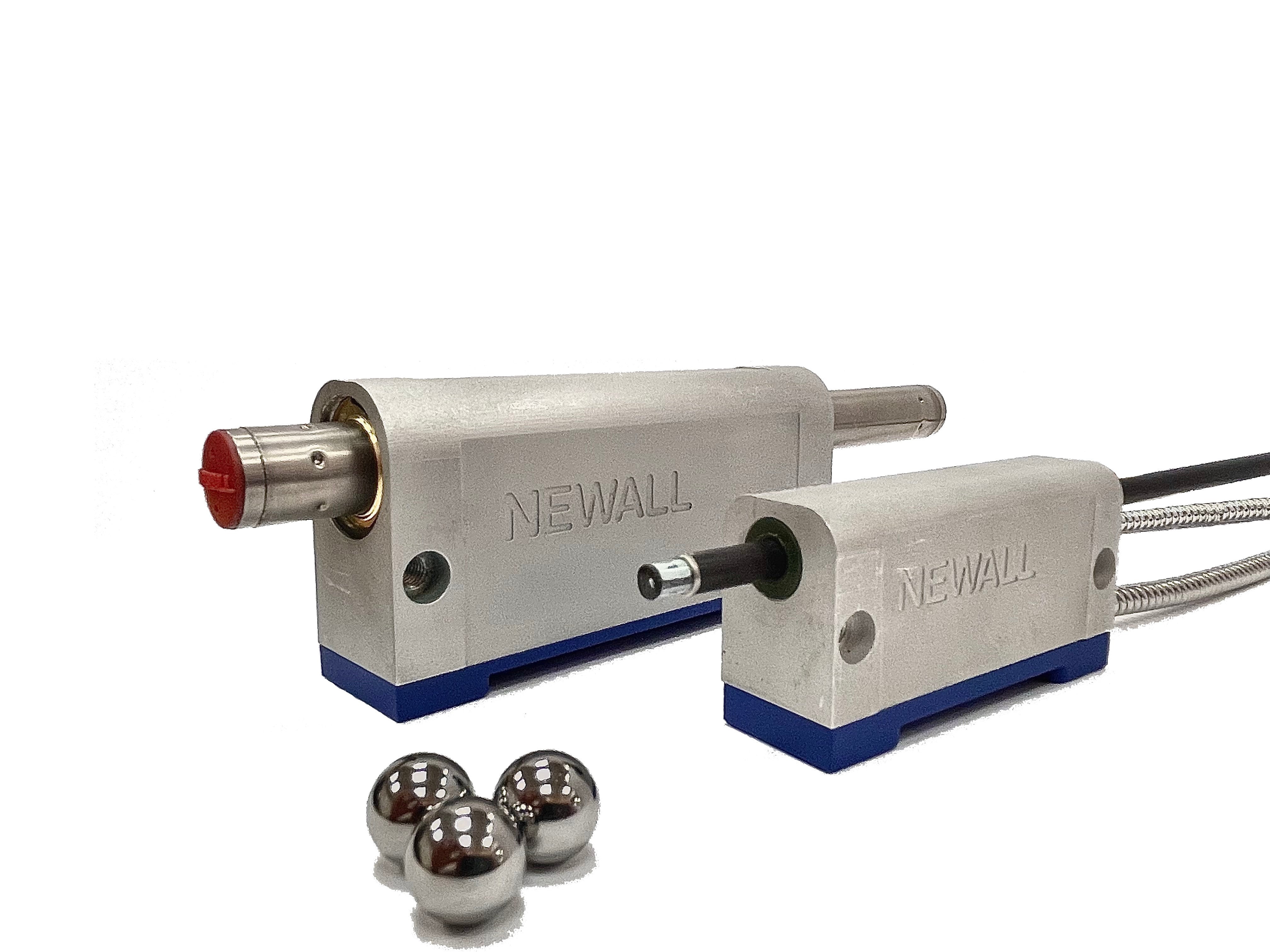

Newall Spherosyn Serial encoder assembly, NMS800/NMS100 compatible
Newall Spherosyn Serial encoder assembly, NMS800/NMS100 compatible

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Newall Electronics

Newall - Spherosyn Serial Encoder Assembly - 11.5' Cable

SKU: SE100DA00051A
(0)
$875.00 CAD

Newall Spherosyn Serial linear encoder assembly with the standard 11.5 ft (3.5m) armored reader head cable. Includes the reader head, scale tube, scale cover, and scale support brackets. Pairs exclusively with Newall NMS800 and NMS100 digital readout displays, not compatible with 2G encoders. Select your exact travel length above. Lengths up to 86 in ship standard parcel and are priced online. Lengths over 86 in ship freight and are priced by quote, see Freight Pricing & Lead Times below.

Current Gen

Newall Spherosyn Serial Encoder Assembly

Specifications ▼

Configuration

3 Axis

NMS8031110S10

Machine Type

Milling, turning, and general applications

Encoder Compatibility

Newall Spherosyn Serial and Microsyn Serial encoders. Not compatible with Spherosyn 2G, Microsyn 2G, DP700, or DP1200, which use a different signal type.

Auxiliary Output

Included

RS-232 Output

Standard on 3-axis and 4-axis configurations. Confirm availability on 2-axis before ordering if required.

Core Functions

Feed Rate Display, Zero Approach Warning, Bolt Hole Circle, Arc Contouring, Programmable Memory, Polar Coordinates, Line Hole Calculation, Tool Offsets, Taper Calculations, Axis Vectoring/Summing

Panel Mount

Available at no additional charge. Contact us for the panel mount part number.

Important Information ▼

Confirm Encoder Type Before Ordering

NMS800 pairs only with Spherosyn Serial and Microsyn Serial encoders. It is not compatible with the 2G encoders used by Newall's older DP700 and DP1200 displays. Confirmed directly with Newall Electronics.

Replaces DP700 and DP1200

NMS800 is Newall's current-generation display, positioned as the replacement for the legacy DP700 and DP1200 lines. If you have an existing DP700 or DP1200 system, replacement parts remain available; see our DP700 product line.

Warranty

5-year standard warranty with 3-year no-fault coverage. USA and Canada only, terms vary by region, confirm at time of purchase.

Ships Direct from Newall Electronics

Lead time and availability confirmed at time of order.

Also Needed For This Job ▼

Also Needed For This Job

Pairs with a Spherosyn Serial Encoder Assembly, Microsyn Serial 5 Micron, or Microsyn Serial 10 Micron encoder assembly. A Display Mounting Arm is sold separately unless included in a package. Longer travels may need a Serial Extension Cable.
