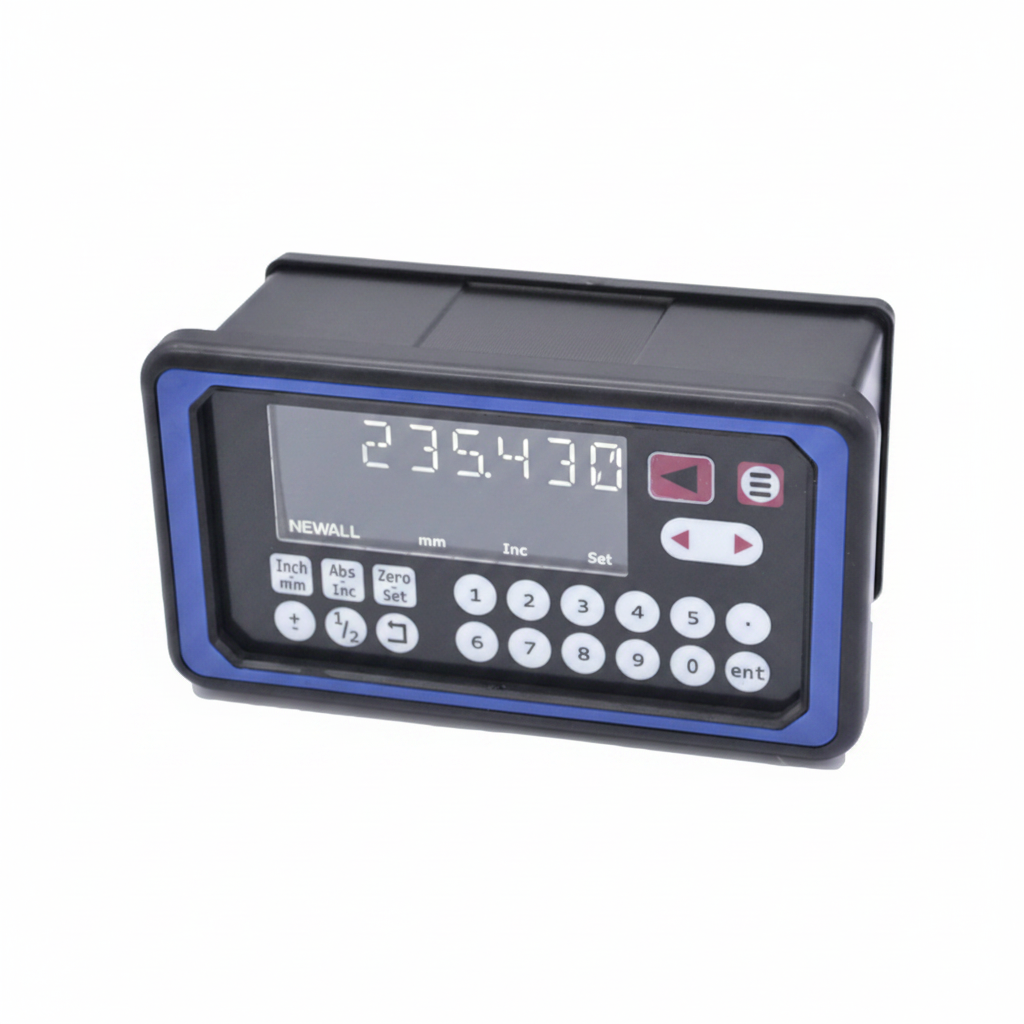

Newall - NMS100 Digital Readout Display (1 Axis, Serial) - NMS1011U10

Configuration

1 Axis, Serial

Machine Type

General machining, back gauges, sawing, cut-off, inspection, length gauges, metrology

Encoder Compatibility

Newall Spherosyn Serial and Microsyn Serial encoders. Not compatible with Spherosyn 2G or Microsyn 2G (S2G/M2G).

Core Functions

Feed Rate Display, Multiple Language Support, Absolute/Incremental, Zero Approach Warning, Preset/Zero Reset, Digifind, Centre Find, Programmable Memory (200 coordinates), Undo Function

Data Interface

RS-232 Output

Construction

Aluminium body, membrane keypad with audible tactile feedback

Dimensions & Weight

Height 104mm (4.1in), Width 200mm (7.87in), Depth 90mm (3.54in), Weight 0.5kg (1.1lbs)

Electrical

100-240 VAC (47-63 Hz) to external PSU, 15-24 VDC input to display

Single-Axis Display

NMS100 is a single-axis display. For multi-axis applications, see the NMS800 line.

Mounting Arm Compatibility Not Yet Confirmed

Newall's own NMS100 documentation references a separate mounting arm data sheet. We have not yet confirmed whether the standard DP700/NMS800 mounting arms fit NMS100. Contact us before ordering a mounting arm for this display.

Warranty

5-year standard warranty with 3-year no-fault coverage. USA and Canada only, terms vary by region, confirm at time of purchase.

Ships Direct from Newall Electronics

Lead time and availability confirmed at time of order.
