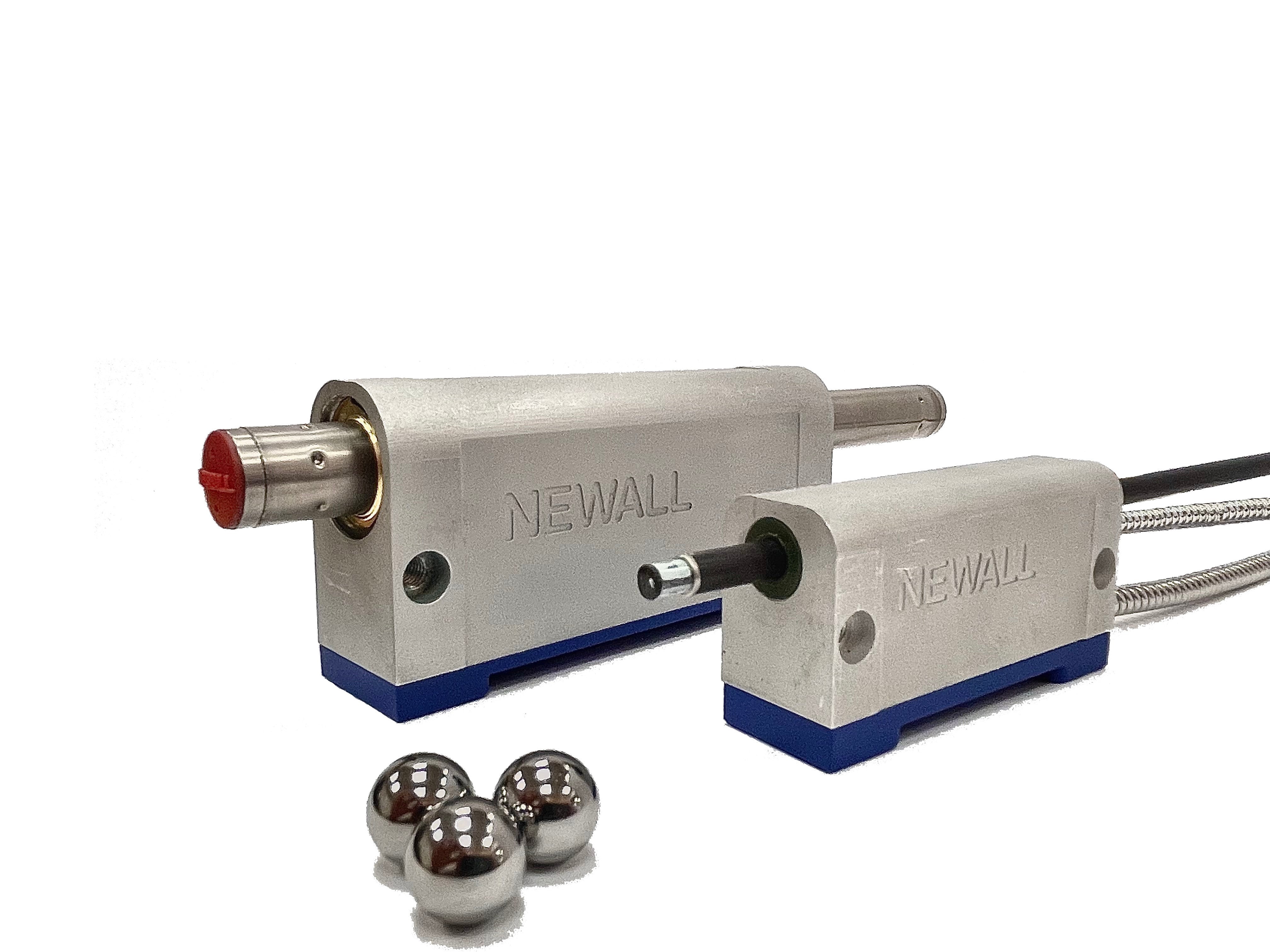

Newall Microsyn Serial encoder assembly, 5 micron accuracy
Newall Microsyn Serial encoder assembly, 5 micron accuracy

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Newall Electronics

Newall - Microsyn Serial Encoder Assembly - 5 Micron, 11.5' Cable

SKU: ME050DA00055A
(0)
$1,079.00 CAD
Newall Microsyn Serial linear encoder assembly, 5 micron accuracy, with the standard 11.5 ft (3.5m) armored reader head cable. Includes the reader head, scale tube, scale cover, and scale support brackets. Pairs exclusively with Newall NMS800 and NMS100 digital readout displays, not compatible with 2G encoders. Select your exact travel length above.
Current Gen

Newall Microsyn Serial Encoder Assembly, 5 Micron

Specifications ▼

Travel Range

2 inch to 40 inch, select exact travel length above

Accuracy

5 Micron accuracy

Cable Length

11.5 ft (3.5m) armored cable, standard. 7m and 10m armored cables available, add $100.

Overall Length

Travel length + 7.4 in (add when checking clearance)

Includes

Reader head w/11.5 ft armored cable, scale tube, scale cover, scale support brackets

Encoder Compatibility

Pairs with Newall NMS800 and NMS100 displays only. Not compatible with Spherosyn 2G, Microsyn 2G, DP700, or DP1200.

Environmental Rating

IP67, fully submersible, no glass or tape to break or scratch

Mounting & Bracket Kits ▼

Bracket Kits

Sold separately. NMS800/Serial-specific kits: LBKS02, LBK030 (lathe), UBK030 (universal), 600-65480 (quill), 600-65340 (single end mount). Not interchangeable with DP700's "-M" bracket kits. Contact us to confirm the right kit for your machine.

Extension Cables

Recommended for travels over 100 in. Returnable for full credit if not needed once installed.

Important Information ▼

Order by Travel Length, Not Overall Length

Overall length equals travel length plus 7.4 in. Measure your machine's actual travel before ordering.

Encoder Compatibility

Microsyn Serial pairs with Newall NMS800 and NMS100 displays only. Not compatible with Spherosyn 2G, Microsyn 2G, DP700, or DP1200. Confirmed directly with Newall Electronics.

Need a Longer Cable?

This listing includes the standard 11.5 ft (3.5m) armored cable. 7m and 10m armored cables are available for $100 additional, or see the Spherosyn/Microsyn Serial Extension Cable for longer options.

Need the Other Accuracy Tier?

This is the 5 Micron version. Looking for 10 Micron accuracy instead?

Travel Not Listed?

Contact us for pricing and part number on travels over 40 in or between listed increments.

Ships Direct from Newall Electronics

Lead time and availability confirmed at time of order.

Also Needed For This Job ▼

Also Needed For This Job

Pairs with the 2-Axis No Aux, 2-Axis With Aux, 3-Axis, or 4-Axis NMS800 Display. Quill and lathe installs need a bracket kit (600-65480, LBK030, and others, contact us to order) to mount the reader head.
