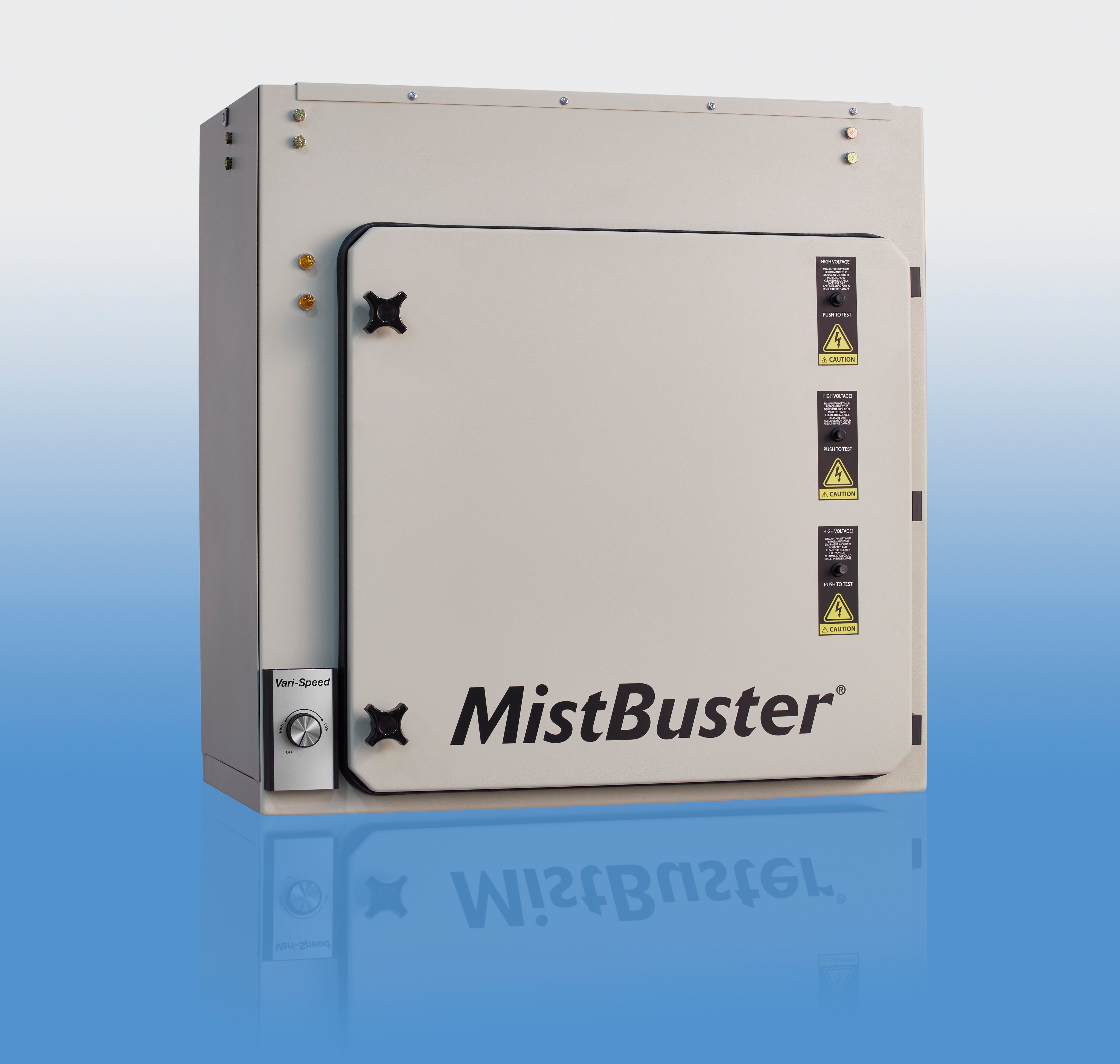

MistBuster 850 00486-W - front panel with door latches and coolant selector switch

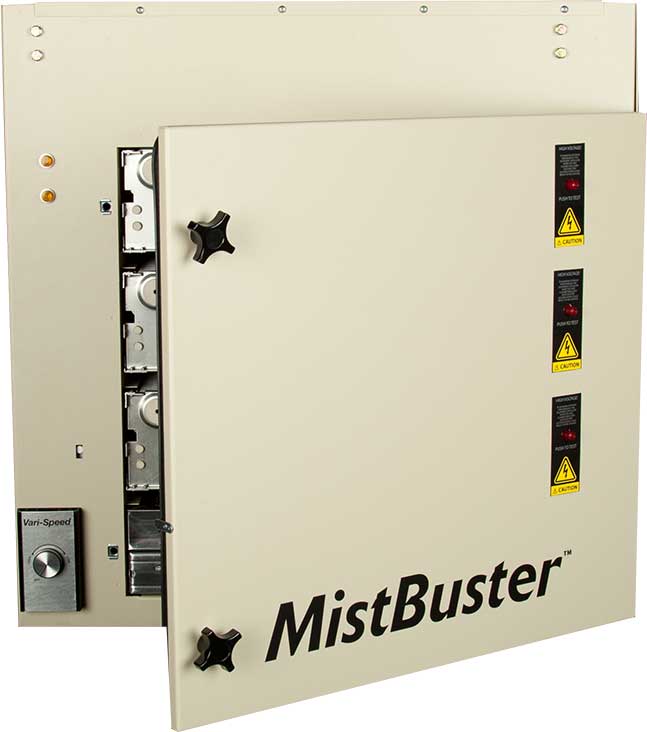

MistBuster 850 00486-W - side view showing inlet opening and cabinet dimensions
MistBuster 850 00486-W - front panel with door latches and coolant selector switch
MistBuster 850 00486-W - side view showing inlet opening and cabinet dimensions

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Air Quality Engineering

MistBuster® 850 (120V) - 2-Cell Mist Collector & Eliminator - 00486-G

SKU: 00486-G
(0)
$8,576.00 CAD

The MistBuster 850 is Air Quality Engineering's machine-mount mist collector for CNC machining centers running high-pressure coolant up to 1,500 PSI. This is the standard 2-cell configuration; a 3rd Cell Upgrade is available separately for shops that need more capture power without stepping up to the 2000. Available to order, ships direct from AQE.

Technical Information: MistBuster MX Series Air Cleaner Brochure (PDF)

Specifications ▼

Airflow

Variable to 850 CFM

Filtration

4-stage electrostatic, 2 collector cells (AQE Advantage cell plus 1 high-efficiency cell)

Efficiency

Up to 99.4% on submicron particles, per AQE spec sheet (ASHRAE 52.2 at 750 CFM)

Power Input

115V AC, 60Hz, 1-phase, 4.3A

Coolant Compatibility

Water-soluble or oil-based, switchable via patented variable voltage selector

Cabinet Dimensions

27.10"L x 14.00"W x 27.47"H

Inlet Opening

16.62" x 9.08"

Weight

99 lbs installed, 111 lbs shipping

Warranty

36-month limited warranty from Air Quality Engineering

Important Information ▼

Confirm Coolant Pressure Before Ordering

Rated for high-pressure coolant systems, 600 to 1,500 PSI. Confirm your machine's coolant pressure falls in this range before ordering.

Mounting Kits Sold Separately

This listing is the direct-mount unit only. Pedestal, cart, machine-mount, and sloped plenum kit configurations are available. Contact us for kit pricing.

Photo Shown Is Representative

Image displays a typical unit of this mist collector. Confirm exact fit using the part number and specs above before ordering.

Also Available ▼

Want More Filtration Efficiency?

Add the 3rd Cell Upgrade to step this unit up to 3-cell configuration for higher submicron capture. Need a smaller footprint? See the MistBuster 850 Compact. For multi-machine, high-volume applications, see the MistBuster 2000. Need pedestal, cart, or machine-mount hardware? Contact our team to configure a complete kit.

Suited for: CNC machining centers and manual machines running high-pressure coolant systems, including Haas VF-series, Fadal VMC, Mazak Nexus, and Okuma vertical mills. Confirm your coolant pressure (600 to 1,500 PSI) before ordering.

Why This Cell Lasts Longer: AQE's patented electronic cell design (Patents #6428611 and #7717984) uses a floating ionizer contact, ceramic insulator construction, and a variable voltage coolant selector to cut down on the short circuits that force frequent cell washing. Field results vary, but shops have seen wash intervals stretch from monthly to yearly.

Available to order. Ships direct from AQE.
