MistBuster® 2000 (120V) - 4-Cell Mist Collector & Eliminator - 00449-G
Couldn't load pickup availability
The MistBuster 2000 is Air Quality Engineering's highest-capacity mist collector, built for the highest spindle speeds and coolant pressures in the MistBuster line, up to 2,000 PSI. It's the right call for multi-machine and high-volume mist collection where the 850 doesn't have the airflow to keep up. This is the standard 4-cell configuration; a Cell Kit is available separately for shops that need the full 6-cell, 99.6% efficiency configuration. Available to order, ships direct from AQE.
Technical Information: MistBuster MX Series Air Cleaner Brochure (PDF)
Specifications ▼
Airflow
Variable to 1650 CFM
Filtration

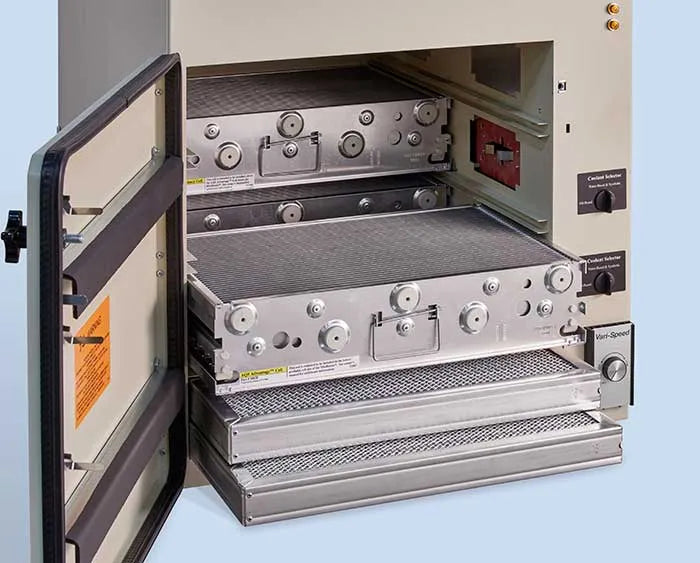

4-stage electrostatic, 4 collector cells standard (2 AQE Advantage cells plus 2 high-efficiency cells)
Efficiency
Up to 99.6% on submicron particles, per AQE spec sheet (ASHRAE 52.2 at 1,000 CFM)
Power Input
115V AC, 60Hz, 1-phase, 8.2A
Coolant Compatibility

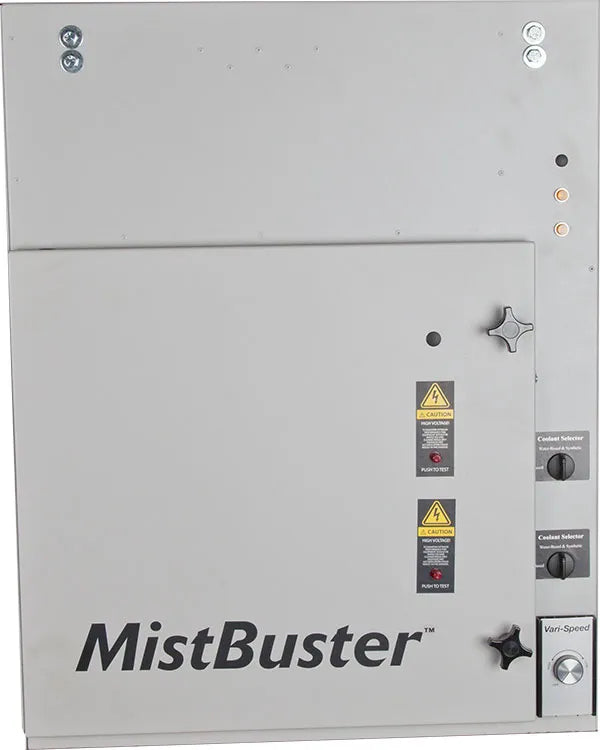

Water-soluble or oil-based, switchable via patented variable voltage selector
Cabinet Dimensions
25.98"L x 26.56"W x 27.49"H
Inlet Opening
16" x 20.75"
Weight
203 lbs installed, 230 lbs shipping
Warranty
36-month limited warranty from Air Quality Engineering
Important Information ▼
Mounting Kits Sold Separately
This listing is the direct-mount unit only. Pedestal, cart, and machine-mount kit configurations, including plenum and flex hose hardware, are available. Contact us for kit pricing.
Photo Shown Is Representative
Image displays a typical unit of this mist collector. Confirm exact fit using the part number and specs above before ordering.
Also Available ▼
Want the Full 6-Cell Configuration?
Add the Cell Kit to push this unit to 6-cell configuration for maximum submicron capture. For standard high-pressure CNC applications up to 1,500 PSI, see the MistBuster 850. For manual machines and lower-pressure applications, see the MistBuster 500. Need pedestal, cart, or machine-mount hardware? Contact our team to configure a complete kit.
Why This Cell Lasts Longer: AQE's patented electronic cell design (Patents #6428611 and #7717984) uses a floating ionizer contact, ceramic insulator construction, and a variable voltage coolant selector to cut down on the short circuits that force frequent cell washing. Field results vary, but shops have seen wash intervals stretch from monthly to yearly.
Suited for: The highest-pressure CNC coolant systems in the MistBuster line, 1,500 to 2,000 PSI, and multi-machine or high-volume mist collection applications. Verified in use on Fadal, Haas, Mazak, and Okuma machine tools, among many others in AQE's supported equipment list. For standard high-pressure applications (600 to 1,500 PSI), see the MistBuster 850. For manual machines and lower-pressure CNC applications, see the MistBuster 500.
Available to order. Ships direct from AQE. This item ships freight.
Complete the setup:
→ MistBuster 2000 Cell Kit for the full 6-cell, maximum-efficiency configuration
