Acu-Rite - LMF 9310 Inductive Encoder

LMF 9310 inductive encoder

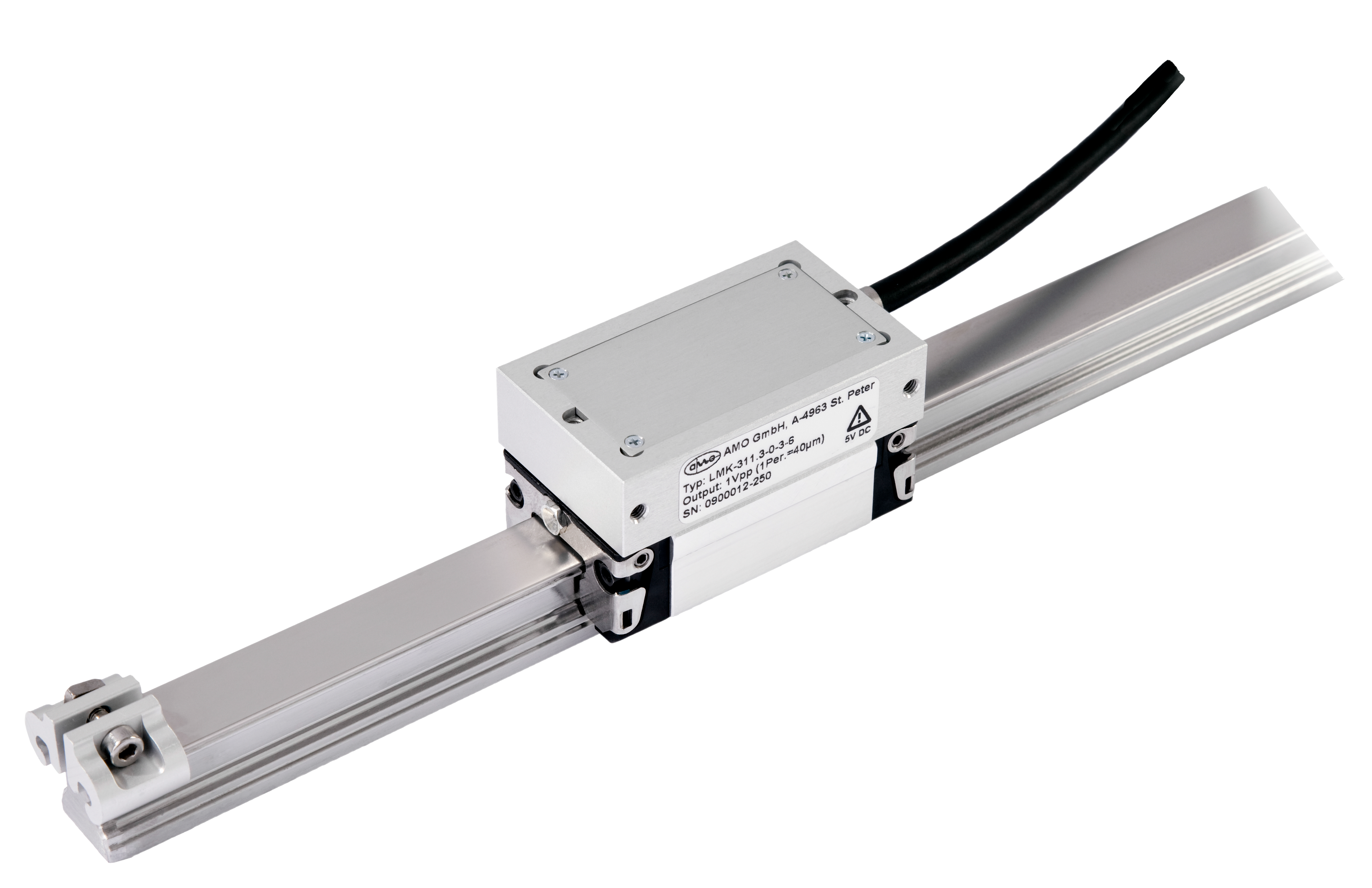

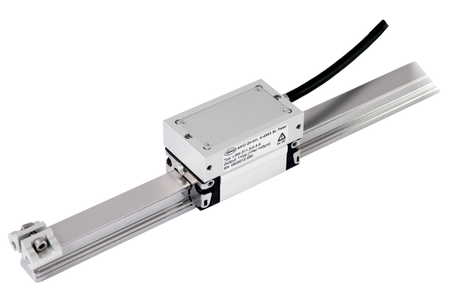

The LMF 9310 Multi-Section Inductive Encoder is a guided measuring system that uses an LMK scanning head with TTL incremental signals and an inductive measuring tape clamped on an integrated guiderail. When properly installed to specifications, this encoder has an Ingress Protection Rating of 67 (IP67), leaving this measurement system virtually unaffected by environmental contaminants (i.e. oil, coolant, etc.). With the incorporation of the included mounting coupling on the scanning head, high mounting tolerances can be realized—especially for longer measuring lengths. Durable, dependable and affordable all-in-one package.

• Available in a variety of lengths
• Accuracy grade ±20µm
• Distance-coded reference marks
• 5v incremental TTL signals
• Durable and rugged scale case
• Traversing speed = 3m/s
• Overall width under 35mm (1.4") wide
• IP67 protection rating
