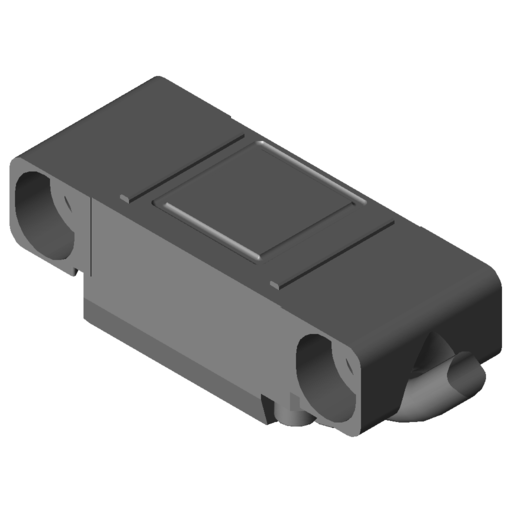

Heidenhain - AK ERM 2280 Scanning Head - 671706-23

AK ERM 2280
Scanning head for incremental built-in encoder
with magnetoresistive scanning
Line count:             3520
Drum outside diameter:  221.29 mm
Grating period:         197.5 µm
Output signal:          ~1Vpp
Cutoff frequency (-3
dB):                    300.00 kHz
Reference mark:         analog
Power supply:           5 V (+-10 %)
Degree of protection:   IP67 (EN60529)
Operating temperature:  -10/+60 °C
Electrical connection:  Coupling M23, male, 12-pin
Pin configuration:      D294999
Connecting direction:   Cable outlet tangential
                        (right)
Cable length:           1.00 m
Cable type:             PUR Ø 4.5 mm
Company identification: HEIDENHAIN

*PLEASE CALL FOR PRICING & AVAILABILITY
*COMES DIRECTLY FROM OEM
