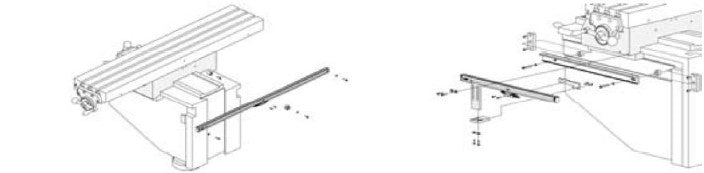

JET JTM - Acu-Rite SENC 150 X/Y Scale Bracket - 689402-05

Part Number

689402-05

Type

X/Y Scale Mounting Bracket — Longitudinal and Cross-Feed Axes

Encoder Compatibility

Acu-Rite SENC 150 linear encoder (all measuring lengths)

Axes Covered

X (Longitudinal) and Y (Cross-Feed)

Backup Spar

Backup spar not included — order separately if required

Application

SENC 150 encoder scale mounting for knee mill DRO retrofit

JET JVM 836VS / JTM-1 / JTM-2

9×42 table configuration

JET JTM 4VS / JTM 1055

9×49 and 10×55 configurations

Atrump LCS / LMV / LMV-50

Standard knee mill configurations

Chevalier 2VSG / 4VK / 5VK

Standard knee mill configurations

Manford FM-2S / FM-3VS / FM-3VK

Also FM-2SKH / FM-2SKL / FM-3VKH / FM-3VKL

MSC JVM 836VS

9×42 table configuration

Willis ULTIMA 2S / 3VK / 3VS

Standard knee mill configurations

Confirm Machine Model Before Ordering

Bracket fit is machine-specific. Verify your exact make and model before placing order.

Installation Hardware Not Included

Required installation hardware not included — refer to the OEM installation manual for your machine. Contact Acu-Rite Solutions to confirm all components before ordering.

X & Y Axes Only — Z Bracket Sold Separately

This bracket covers X and Y axes only. Z-axis quill and knee brackets are separate SKUs — contact us with your machine model.

Ships Direct from Acu-Rite Solutions

Available to order. Lead time 3–5 business days. Expedited shipping available on request.
