Acu-Rite - DRO Frame Panel Mount - 1197274-01

Part Number

1197274-01

Type

Frame panel mount — recesses DRO display flush into enclosure or control cabinet

Panel Cutout Required

310 × 219 mm

Overall Frame Dimensions

318 × 227 mm

Compatible Displays

DRO203, DRO203Q, DRO303, DRO304 — DRO200 and DRO300 series only

Application

Electrical enclosures, control cabinets, and custom panel builds — mills, lathes, grinders

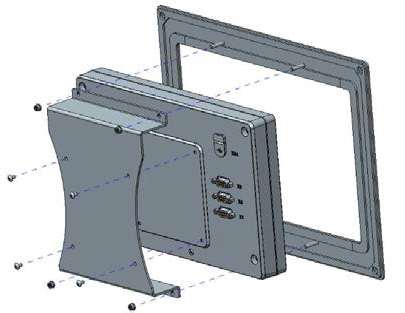

Front Mounting Frame

Outer frame face — visible panel side, holds display in position

Rear Clamping Frame

Clamps to reverse side of panel to secure the assembly from behind

Mounting Hardware

4× M4 ISO 10511 lock nuts, 4× M4 × 6 ISO 7380 button head screws

DRO200 and DRO300 Series Only

Compatible with DRO203, DRO203Q, DRO303, and DRO304. Not compatible with the DRO100 series (DRO101, DRO102, DRO103). Confirm your display model before ordering.

Panel Cutout Must Be Pre-Cut

Your enclosure or cabinet panel must have a 310 × 219 mm cutout before installation. The frame does not cut the panel — plan this into your cabinet fabrication.

Need an Arm or Stand Instead?

This mount is for panel/cabinet integration only. For arm and stand options, see the full mounting hardware lineup.

Ships Direct from Acu-Rite Solutions

Fulfilled from Schaumburg, IL. Expedited shipping available at checkout.
