Acu-Rite SENC 150 - 558115-35

In stock
SKU: 558115-35
Regular price $860.00 USD
  • SHIPS DIRECTLY FROM OEM
  • CONTACT OUR TEAM FOR PRICING AND AVAILABILITY
  • SENC 150 35.0 925 Diff 5 C001 13.0 4.00 3AS09 63 DK 5.0 45 1
SENC 150

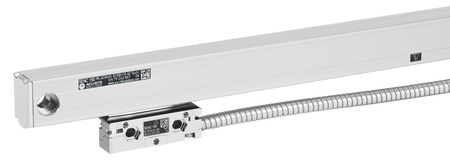

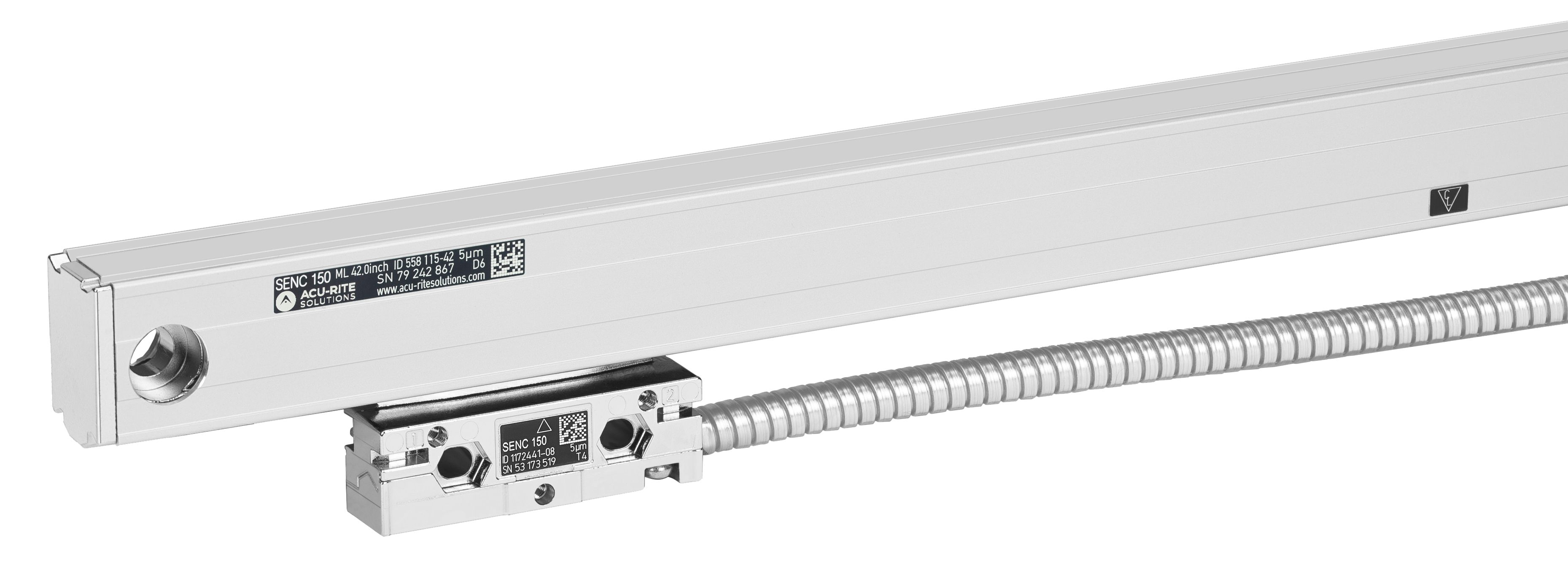

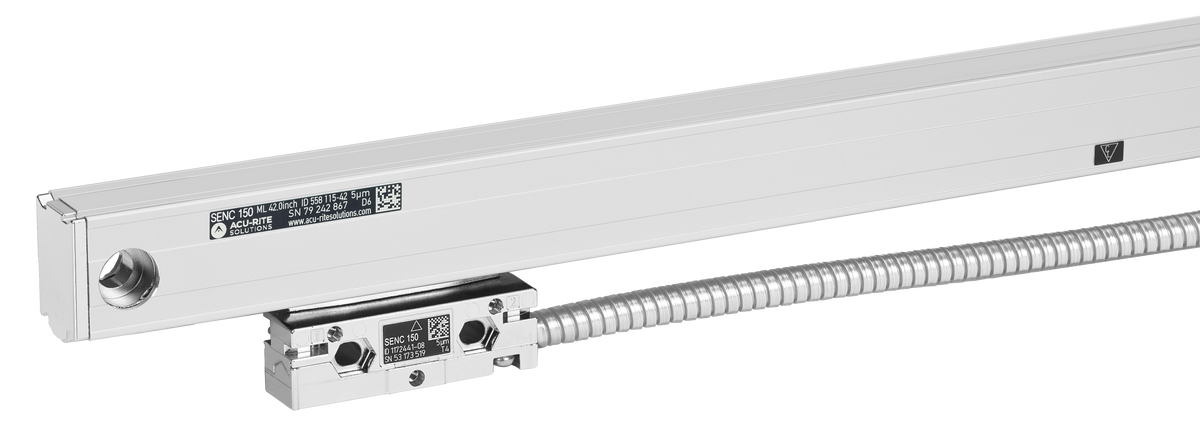

Incremental sealed linear encoder with small
cross section
Measuring length:       925 mm
                        933.45 mm (max)
                        35.0 inch
                        36.75 inch (max)
Accuracy grade:         ± 5.0 µm
Grating period:         20.000 µm
Fastening type:         End block + mounting spar
Output signal:          Differential TTL output
Resolution:             5 µm at 4-fold evaluation
Reference mark position:Distance-coded reference
                        marks with nominal
                        increment 1000 x grating
                        period
Power supply:           5V+-5%
Electrical connection:  D-sub connector, metal
                        housing, 2-row, with metal
                        armor and locking screws,
                        9-pin male
Cable type:             PVC Ø 5.0 mm with armor Ø
                        8.25 mm
Cable length:           4.00 m
                        13.0 foot
Company identification: Acu-Rite
