Samchully - 5", 3-Jaw, Closed Center Hydraulic Chuck, M12x1.75 - HC-05

In stock
SKU: HC-05
Regular price $1,180.00 USD

HC-05 [M12x1.75]

  • Includes: Mounting Bolts; Soft Top Jaws; Master Jaws; T-Nuts; Handle
  • Kitagawa Equivalent: N-05
  • Grip Dia. Max (mm): 135
  • Grip Dia. Min. (mm): 16
  • Jaw Stroke Dia. (mm): 6.4
  • Plunger Stroke (mm): 15
  • Max. Permissible Input Force [kN(kgf)]: 8.2 (836)
  • Max. Static Gripping Force [kN(kgf)]: 25.2 (2570)
  • Max. r.pm.: 5500
  • Weight [kg]: 6.2
  • Series: HC
  • Size: 5"
  • Includes: 3 Jaws
  • Jaws: 3

CONTACT OUR TEAM FOR AVAILABILITY

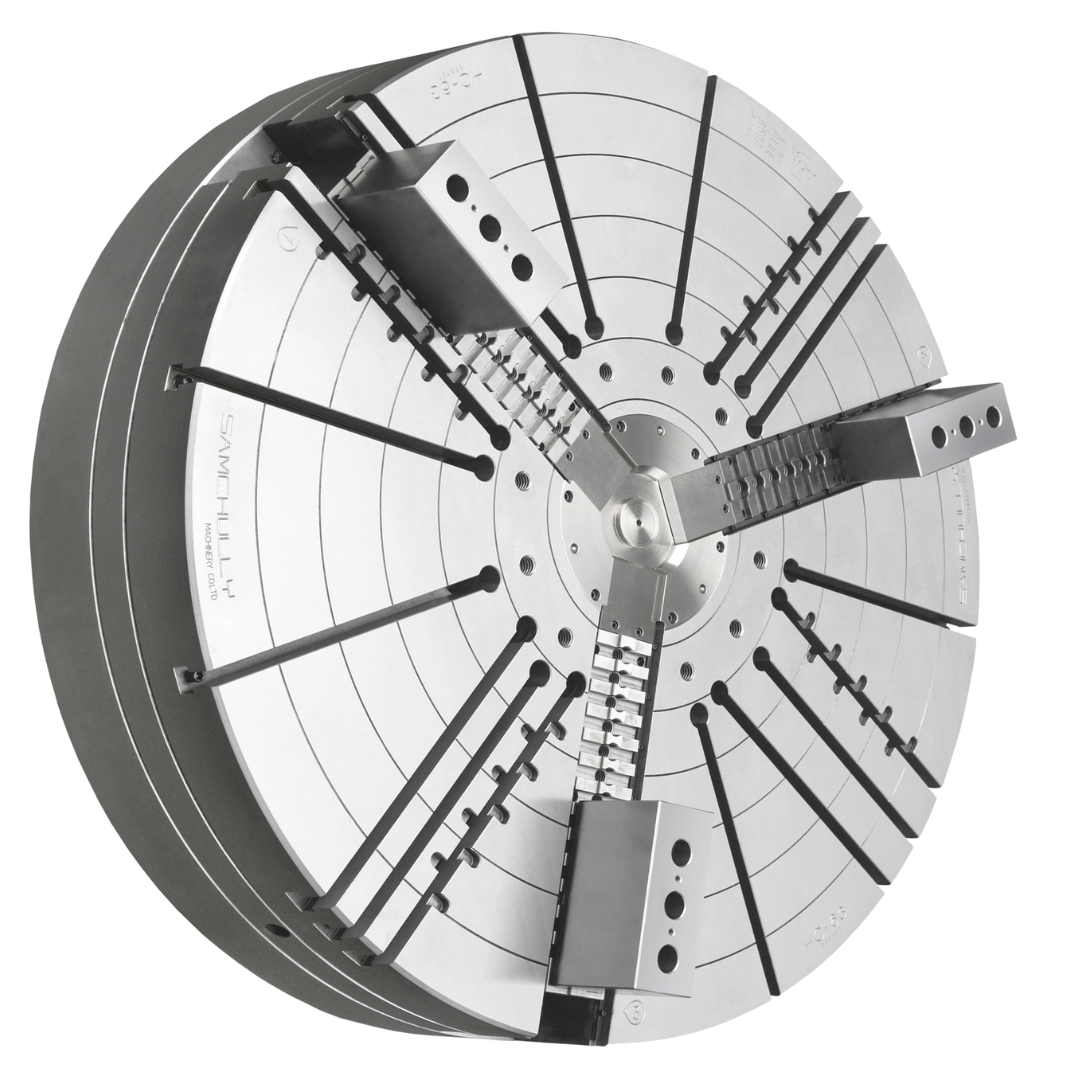

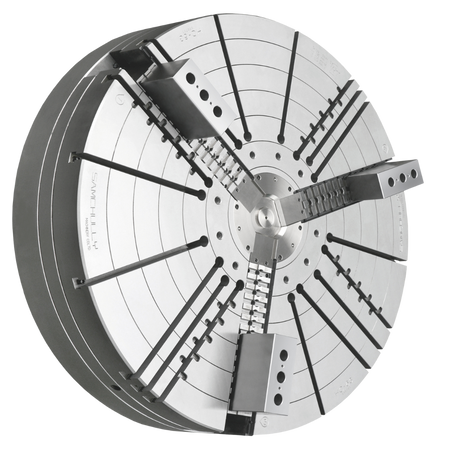

PRODUCT PHOTO MAY NOT BE THE EXACT MODEL

    Description

    5" 3-jaw, closed-center plain back hydraulic chuck with [M12x1.75] drawtube connector; 135mm O.D.; 16 ~ 135mm clamping range; 6.4mm jaw stroke on diameter; 14mm plunger stroke; 25.2KN maximum static gripping force; 1.5x60° master jaws serration; 5500 maximum rpm
