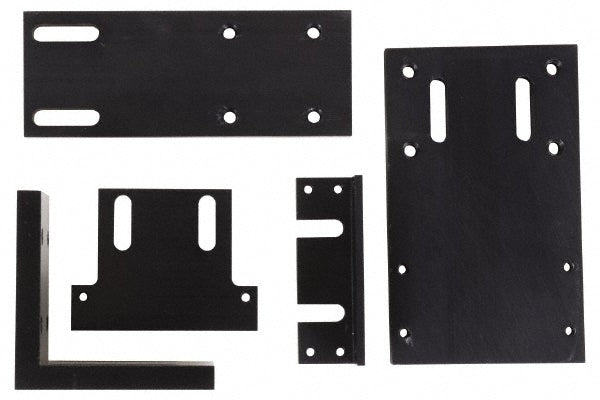

Newall universal bracket kit, Microsyn/Microsyn Serial, UBK030
Newall universal bracket kit, Microsyn/Microsyn Serial, UBK030

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Newall Electronics

Newall - Universal Bracket Kit (Microsyn/Microsyn) - UBK030

SKU: UBK030
(0)
$121.00 USD
Newall Universal Bracket Kit (Microsyn/Microsyn), part number UBK030. Mounts 2 Microsyn Serial reader heads, X and Y axis, general-purpose machine mounting. Mounts to Newall Microsyn Serial encoders only, for NMS800 and NMS100 digital readout systems. Does not fit Spherosyn Serial encoders.
Bracket Kit

Newall Universal Bracket Kit (Microsyn/Microsyn)

Specifications ▼

Machine Type

Universal

UBK030

Configuration

Mounts 2 Microsyn Serial reader heads, X and Y axis, general-purpose machine mounting

Compatible Encoders

See Also Needed For This Job below for direct links

Important Information ▼

Not Interchangeable With DP700 Bracket Kits

This kit mounts Microsyn Serial encoders only (NMS800/NMS100). It does not fit Spherosyn Serial, Spherosyn 2G, or Microsyn 2G encoders, and is not interchangeable with DP700's "-M" bracket kits.

Confirm Your Machine Before Ordering

Bracket fit depends on your specific machine make and model. Contact us to confirm the right kit before ordering.

Photo Shown Is Representative

Image displays a typical unit of this bracket kit. Confirm exact fit using the part number above before ordering.

Also Needed For This Job ▼

Also Needed For This Job

Mounts to the Microsyn Serial Encoder (both axes). Pairs with the 2-Axis, 3-Axis, or 4-Axis NMS800 Display.
