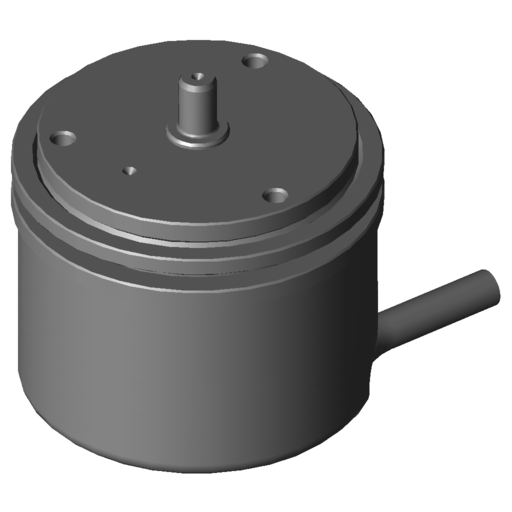

Heidenhain - ROD 426 Incremental Rotary Encoder - 376846-RS

• SHIPS DIRECTLY FROM OEM

• CONTACT OUR TEAM FOR AVAILABILITY

Product Description

ROD 426
Incremental rotary encoder with integral bearing
for separate shaft coupling
Line count:             4500
Output signal:          TTLx2
Max. scanning frequency:300.00 kHz
Power supply:           5 V (+-10 %)
Flange version:         Synchro flange Ø 58 mm,
                        centering collar 50 mm,
                        bolt circle Ø 42 mm, 3 x
                        M4
Type of Flange:         01C
Shaft:                  Solid shaft, diameter 6
                        mm, length 9.5 mm
Type of Shaft:          73A
Protection rating:      IP64 (EN60529)
Operating temperature:  -40/+100 °C
Electrical connection:  free cable end
Pin configuration:      D294999
Connecting direction:   Cable outlet for axial and
                        radial use
Cable length:           5.00 m
Special characteristics,
rotational encoders:    none
