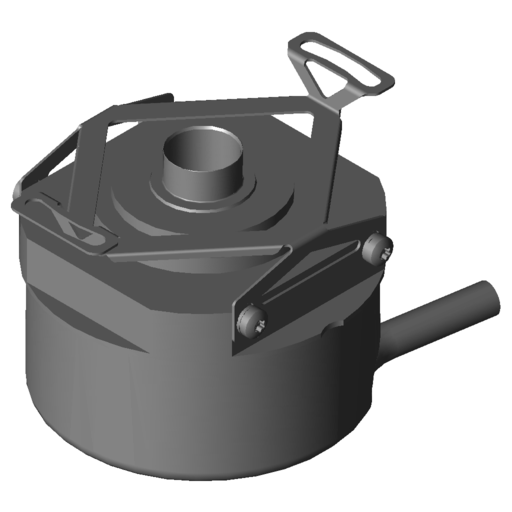

Heidenhain - ERN 430 Incremental Rotary Encoder - 385430-28

*COMES DIRECTLY FROM OEM

*PLEASE CALL FOR PRICING & AVAILABILITY

ERN 430
Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count:              2048
Output signal:           HTL
Max. scanning frequency: 300.00 kHz
Power supply:            10 V ... 30 V
Coupling version:        Stator coupling for plane
                         surface (hole circle Ø 63
                         mm)
Type of Coupling:        14
Shaft:                   Hollow through shaft with
                         clamping ring usable on
                         both sides, diameter 12
                         mm
Type of Shaft:           70C
Protection rating:       IP64 (EN60529)
Operating temperature:   -40/+100 °C
Electrical connection:   free cable end
Pin configuration:       D294999
Connecting direction:    Cable outlet for axial
                         and radial use
Included part:           no enclosed part
Cable length:            1.00 m
