Heidenhain - 536398-01 - IBV101

• 536398-01
• IBV 101 TTLx10 200.00 RV OT OH 27B12 27S012

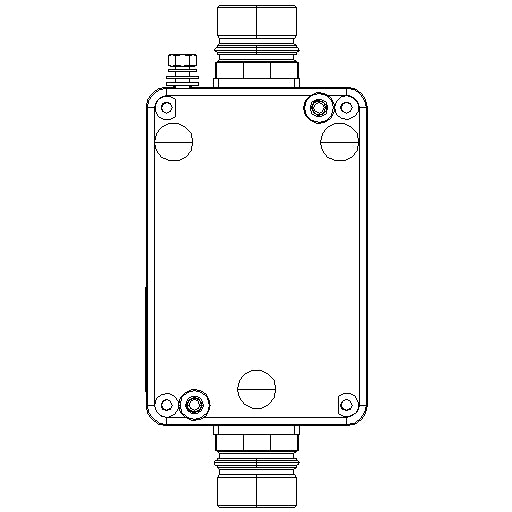

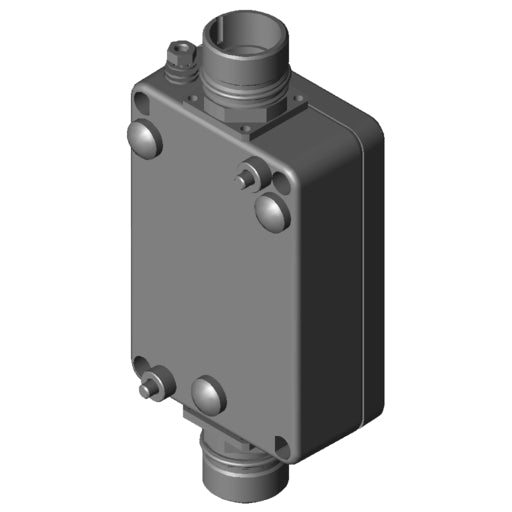

IBV 101
Interpolation and digitizing electronics for
encoders with 1 Vpp signals
Input signal:            sinusoidal voltage
                         signals (1 Vpp)
Electrical connection:   Flange socket M23,
                         female, 12-pin
Output signal:           Square-wave signals, TTL
                         levels with 10-fold
                         interpolation
Electrical connection 2: Flange socket M23, male,
                         12-pin
Max. scanning frequency: 200.00 kHz
Reference mark:          90°
Fault detection signal:  for disturbance LOW
Reversal hysteresis:     without
Power supply:            5 V (+-5 %)
Pin configuration:       D294999
Pin configuration 2:     D294999
Degree of protection:    IP65 (EN60529)
Operating temperature:   0/+70 °C
Special characteristics,
IBV/EXE/IDP:             none
