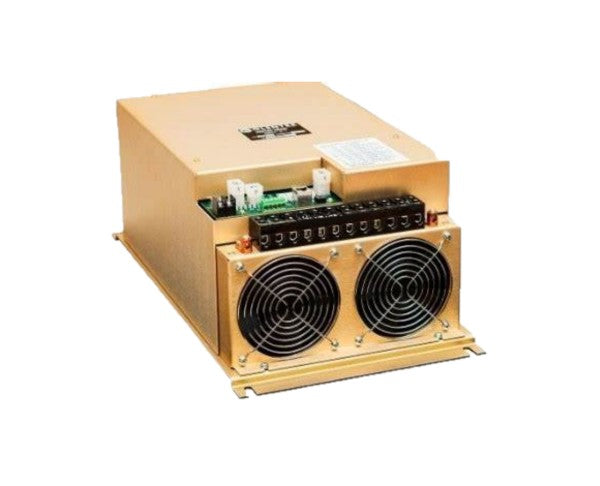

Fadal spindle drive INV-0098 ā€” Glentek flux vector inverter front panel and terminal block
Fadal spindle drive INV-0098 ā€” Glentek flux vector inverter front panel and terminal block

Photo Shown May Not Be Exact
Product photos are for reference and may vary by production run, revision, or supplier batch. Confirm fit against your machine's make, model, and part number before ordering. Questions on fit? Contact us before you order and we'll verify compatibility.

Fadal

Fadal - Spindle Drive - INV-0098

SKU: INV-0098
(0)
$3,800.00 USD

The INV-0098 is the Glentek flux-vector spindle drive used across the Fadal VMC line. When this drive fails, the spindle either won't run or trips on startup and the machine is down until it's replaced. This is the OEM-spec universal replacement.

Specifications ā–¼

Input Voltage

208ā€“240V AC, 3-phase, 50/60 Hz

Control Type

DSP-based flux vector, closed-loop torque control

HP Range

5HPā€“20HP

Configuration

Rotary selector switch, no programming required

Interface

RS-232 serial, MotionMaestro software compatible (digital variants)

Fault Codes ā–¼

Fault Code 9

"Spindle fault line down" ā€” the fault line to the inverter stayed low during spindle operation, signaling drive failure.

Fault Code 10

"Encoder and magnet not responding" ā€” no proper spindle feedback response detected for longer than 3 seconds during operation.

Compatible Machines ā–¼

Fadal VMC 4020, 3016, 2216, 4525, 3020, 5020A, 6030, 6535, 8030, TRM Series

All models using the Glentek spindle drive architecture. Confirm your existing drive's model plate before ordering.

Important Information ā–¼

Usually In Stock

Configuration is set via rotary selector switch at install ā€” no programming required. Contact us to confirm current availability and your machine's HP rating before ordering.

Also Needed For This Job ā–¼

Also Needed For This Job

Check the spindle amplifier while you're in the cabinet ā€” DC Brush Amplifier AMP-0006, DC Brush Amplifier AMP-0021C, and Glentek DC Axis Motor MTR-0003 are the parts most commonly replaced alongside this drive.
