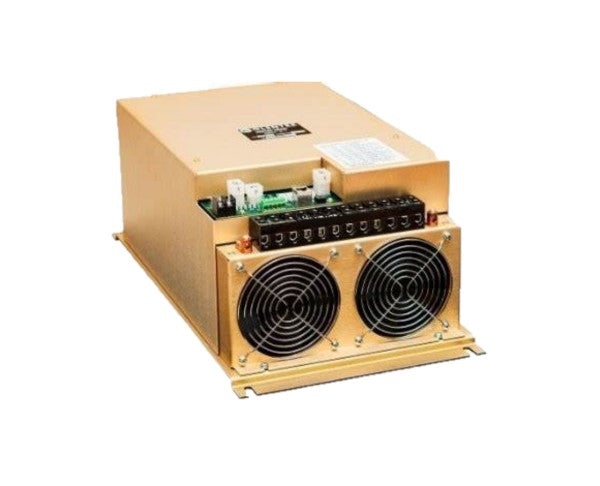

Calmotion CALAMP-5 — Universal Fadal Spindle Drive Replacement

The CALAMP-5 is a universal AC servo spindle drive engineered by Calmotion as a direct replacement for any 40-taper spindle drive used in Fadal vertical machining centers. A single selector switch configures the drive for your specific machine — no rewiring, no custom programming required.

Replaces: CALAMP-7 · CALAMP-13 · All legacy 40-taper Fadal spindle drives

Supported spindle configurations:

• 7,500 RPM spindle
• 10,000 RPM spindle
• 15,000 RPM spindle
• Mechanical hi/low gear configurations
• Wye/delta motor winding configurations

Key features:

• Selector switch configuration for HP, RPM, motor winding, and encoder type
• Flux vector DSP technology — maintains constant 90° phase shift between flux and torque vectors for servo motor-like performance
• Feedback display for real-time spindle drive status and motor RPM monitoring
• Potentiometer balance adjustment — critical for proper rigid tap operation
• Torque control from zero speed through base speed and above

Compatible with all Fadal VMC models using 40-taper spindle systems, including VMC 4020, VMC 3016, VMC 6030, VMC 2216, VMC 4525, VMC 5020A, VMC 6535, and VMC 8030.

Why the CALAMP-5: The original Baldor vectorless spindle drives used in legacy Fadal machines are increasingly difficult to source and repair. The CALAMP-5 is a modern engineered replacement built with current components and field-configurable for every Fadal spindle variant in a single unit — eliminating the need to stock multiple drive models.

Can't confirm compatibility with your specific machine configuration? Submit an RFQ and our team will verify fitment before you order.
