Bridgeport Series II - Acu-Rite SENC 150 X/Y Scale Bracket - 689402-06

Part Number

Acu-Rite OEM bracket — authorized distributor SKU

Type

SENC 150 scale mounting bracket — X & Y axes, rear mount

Axes

X (longitudinal) and Y (cross-feed)

Backup Spar

Not included — 13″ backup spar required, sold separately

Compatible Machines

Bridgeport Series II (11×58), Acer 1-1/2 VA/VS (9×42, 10×49), Acer SUPERMAX 1-1/2 VA/VS — full list in Compatible Machines section

Application

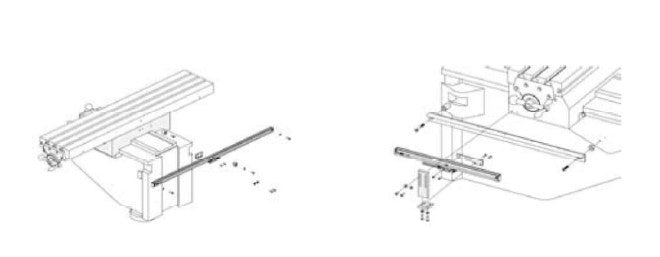

Mounts Acu-Rite SENC 150 linear encoders to X and Y axes of compatible knee mills for DRO retrofit installations

Bridgeport Series II Standard

11×58 table configuration

Bridgeport Series II Special

11×58 table configuration

Acer 1-1/2 VA

9×42 table configuration

Acer 1-1/2 VS

9×42 table configuration

Acer 1-1/2 VA

10×49 table configuration

Acer 1-1/2 VS

10×49 table configuration

Acer SUPERMAX 1-1/2 VA

9×42 table configuration

Acer SUPERMAX 1-1/2 VS

9×42 table configuration

Acer SUPERMAX 1-1/2 VA

Standard configuration

Acer SUPERMAX 1-1/2 VS

Standard configuration

Confirm Machine Model Before Ordering

Bracket fit is machine-specific. Verify your exact make and model against the Compatible Machines list before placing order.

13″ Backup Spar Not Included

Installation requires a 13″ backup spar. Not included with this bracket — source separately before beginning installation.

X & Y Axes Only — Z Bracket Sold Separately

This bracket covers longitudinal (X) and cross-feed (Y) axes only. Quill Z and knee Z brackets are separate SKUs.

Ships Direct from Acu-Rite Solutions

Available to order. Fulfilled direct from Acu-Rite Solutions. Lead time varies — contact us for current availability before ordering for time-sensitive jobs.
